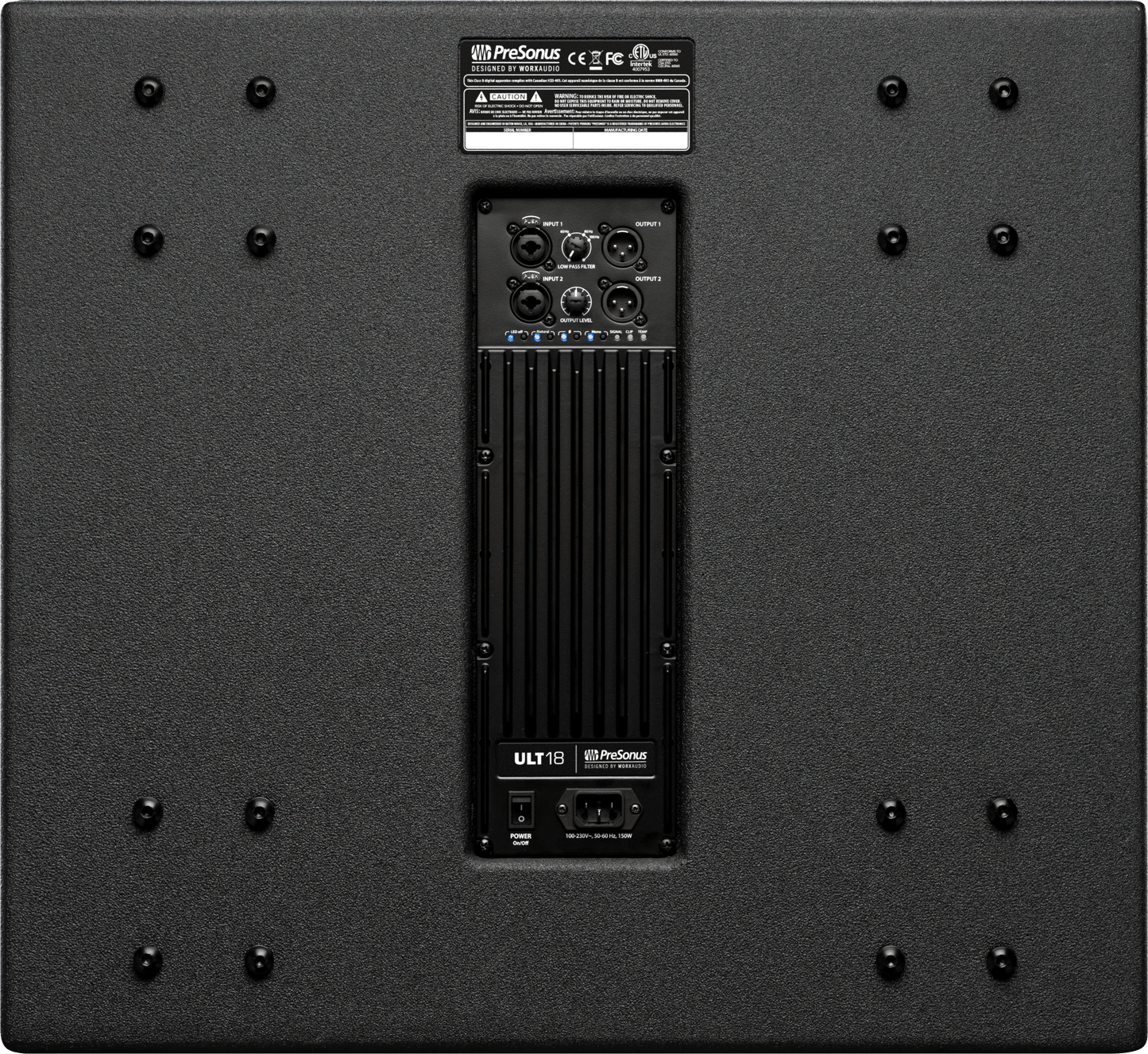

ULT18 Active Sound-Reinforcement Subwoofer
ULT18 Active Sound-Reinforcement Subwoofer
Couldn't load pickup availability
Overview
Designed to complement any full-range PA loudspeaker and a perfect companion for the PreSonus® ULT12 and ULT15, the ULT18 subwoofer delivers a powerful, clear, and accurate low-end punch. With 2,000 watts of Class D power and a direct radiating, ported enclosure, it delivers the detailed low-frequency performance audio pros demand. Its custom 18-inch low-frequency transducer with 4-inch voice coil provides 7 mm of driver travel before over-excursion to push more air and bring more thump. A variable lowpass filter (rare in this class) lets you dial in upper frequency limit. The ULT18 also offers M10 fly points, ground stacking provisions, castor provisions, and a defeatable front-panel LED, making it a great choice for both mobile and install applications.
Overview
Features
- 18-inch custom woofer with 4-inch voice coil with 7 mm driver travel
- 2,000W Class D power (1,000W Program / 500W continuous)
- 2 XLR/¼" combo inputs with direct outputs
- Variable lowpass filter lets you dial in upper frequency limit
- Polarity invert
- Defeatable front-panel LED for low-visibility installs
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Specs
Electronics
Auxiliary Input
N/A
Channels
Two
Inputs
Two - 2 x Line
Line Out
Two - 2 XLR Male (Mix Out, Direct Out)
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Amplifier Type
Class-D
Color
Black
Product Name
ULT18 Active Sound-Reinforcement Subwoofer, Black
Series
ULT
Hardware
Audio Controls
Output Level Low Pass Filter Preset Select Polarity Invert On/Off Mono On/Off Front LED On/Off
Cabinet Material
15mm Eucalyptus Plywood
Grille Material
Powder-Coated Steel
Handle
2 Side
LF Power
2 x 500W Bridged (1000W Total)
LF Transducers
1x18" Ferrite (4" Voice Coil)
Pole Socket
Ground-Stack Provisions
Inputs
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+22 dBu
Measurements
Product Depth
24.5" (62.2 cm)
Product Height
22.5" (57.15 cm)
Product Width
25" (63.5 cm)
Miscellaneous
DSP Features
Presets: Extended LF
Power Cable
IEC
Protections
Amplifier: Over-current, DC, over/under-voltage, over-temperature, high frequency
Transducer: Limiter
Supported Sample Rates
96 kHz
Suspension
M10 Suspension Points
Performance
Amplifier Dynamic Range
119 dB (A-Weighted)
Digital Audio Bit Depth
24 Bit
Peak SPL
135 dB
Total Harmonic Distortion
<0.05% (20 Hz - 20 kHz)
Total Power Output
2000W Peak (1000 RMS)
Speakers
Crossover Frequency
90 Hz
Speaker Type
Powered Subwoofer
Total Impedance
NA
