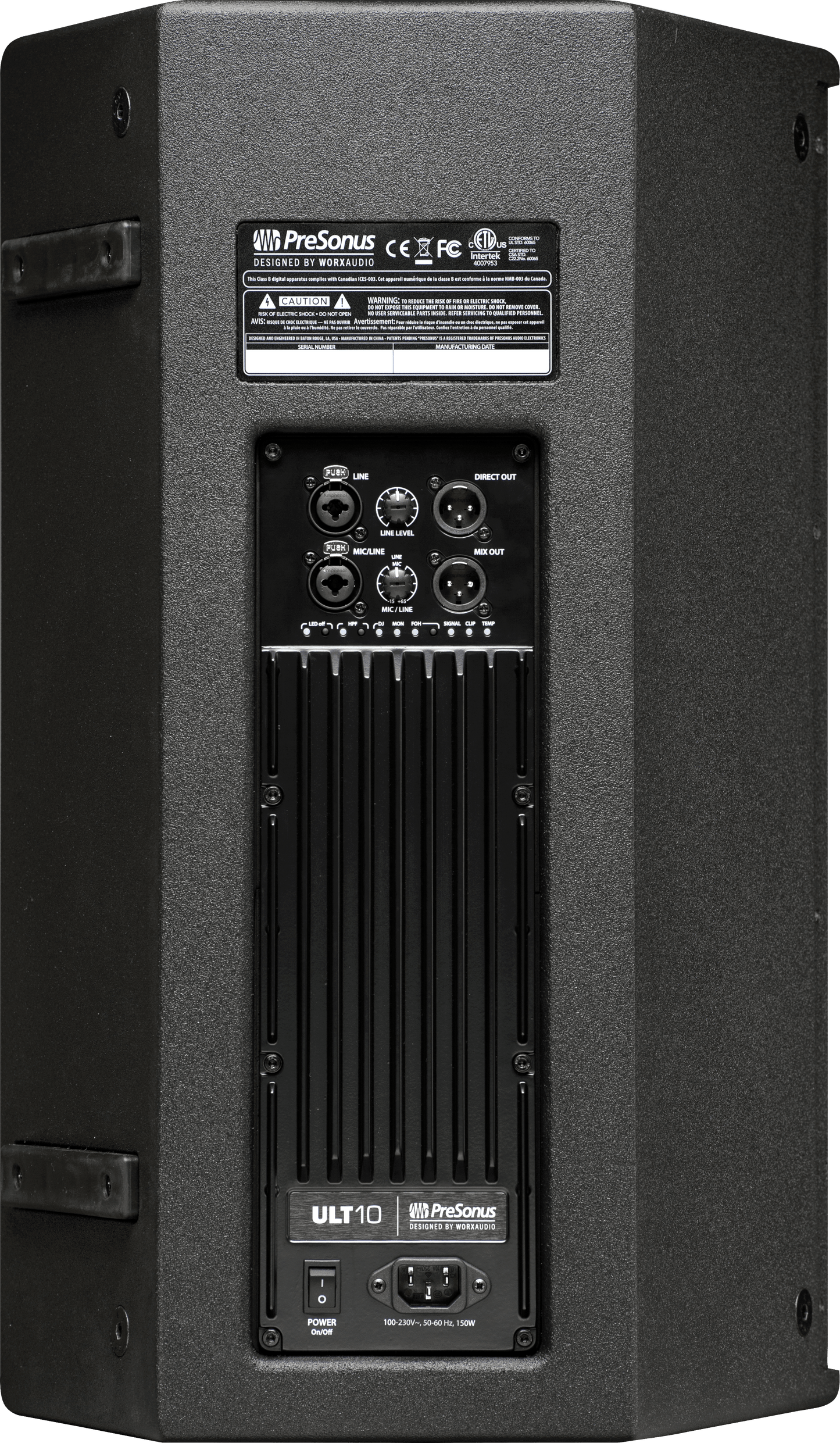

ULT10 2-way Active Sound-Reinforcement Loudspeaker
ULT10 2-way Active Sound-Reinforcement Loudspeaker
Couldn't load pickup availability
Overview
PreSonus ULT10 active loudspeakers combine the widest horizontal dispersion of any loudspeaker in their class (110°) with a focused vertical dispersion (50°) for an ultra-long throw. The result is even coverage throughout the space, enabling the audience to hear clearly wherever they are. Featuring a custom 12-inch low-frequency driver, PreSonus' rotatable Pivot X110 horn, and 1,300W (peak) of Class D power in a lightweight design, ULT full-range loudspeakers deliver first-rate speech intelligibility and natural music reproduction for mobile use and permanent installations.
Overview
Features
- 10-inch custom low-frequency driver with 2.5-inch voice coil
- WorxAudio®-designed, rotatable, waveguide Pivot X110 horn for precise coverage
- Ultra-wide 110˚ horizontal dispersion and tight 50˚ vertical dispersion for longer throw
- 1,300W of Class D power
- XMAX preamp
- Onboard mixer with two combo XLR and ¼" inputs
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Don't see what you're looking for?
Log in to your my.presonus.com account.
Specs
Auxiliary Input
N/A
Channels
Two
Inputs
Two - 1 Mic/Line, 1 Line
Line Out
Two - 2 XLR Male (Mix Out, Direct Out)
VoltageRequirements
100-240 VAC, 50-60 Hz
Amplifier Type
Class-D
Color
Black
Product Name
ULT10 2-way Active Sound-Reinforcement Loudspeaker, Black
Series
ULT
Audio Controls
Mic/Line Level Line/Level Preset Select HPF On/Off Front LED On/Off
Cabinet Material
15mm Eucalyptus Plywood
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
HF Powere
300W Peak (150W RMS)
HF Transducers
1.75" Titanium Diaphragm Compression Driver
Handle
2 Side
LF Power
1000W Peak (500W RMS)
LF Transducers
1x10" Ferrite (2.5” Voice Coil)
Pole Socket
35 mm, 2-Position
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+22 dBu
Microphone Preamp Input Impedance
1 kΩ
Product Depth
11.9” (30.23 cm)
Product Height
22" (55.9 cm)
Product Width
13.2" (335 mm)
DSP Features
Presets: FOH, MON, DJ
Power Cable
IEC
Protections
Amplifier: Over-current, DC, Over/Under-Voltage, Over-Temperature, High Frequency
Transducer: Limiter
Supported Sample Rates
96 kHz
Suspension
M10 Suspension Points
Amplifier Dynamic Range
119 dB (A-Weighted)
Digital Audio Bit Depth
24-bit
Peak SPL
130 dB
Total Harmonic Distortion
<0.05% (20 Hz - 20 kHz)
Total Power Output
1300W Peak (650 RMS)
Coverage Pattern
110 degree (H) x 50 degree (V)
Crossover Frequency
1.6 kHz
Speaker Type
2-Way Biamped
Total Impedance
NA
