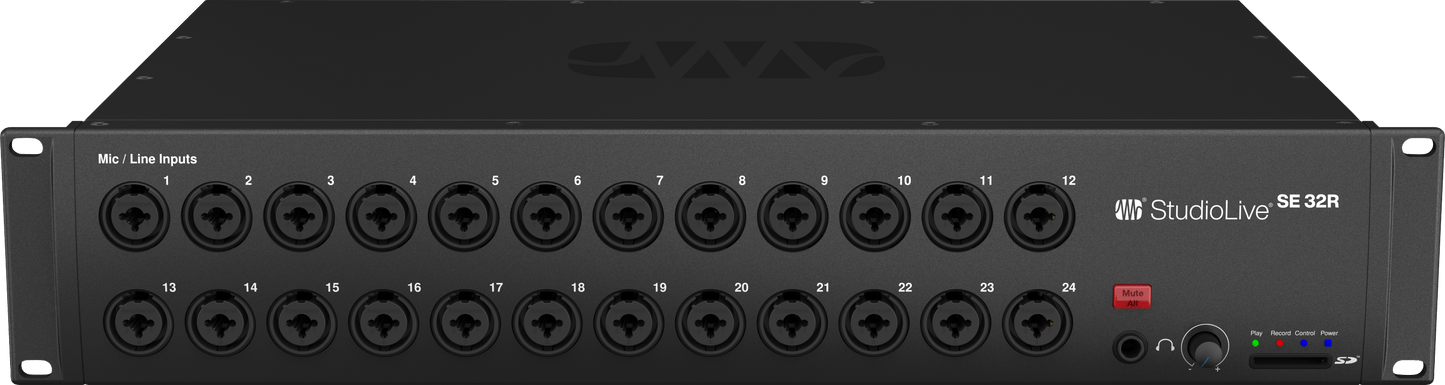

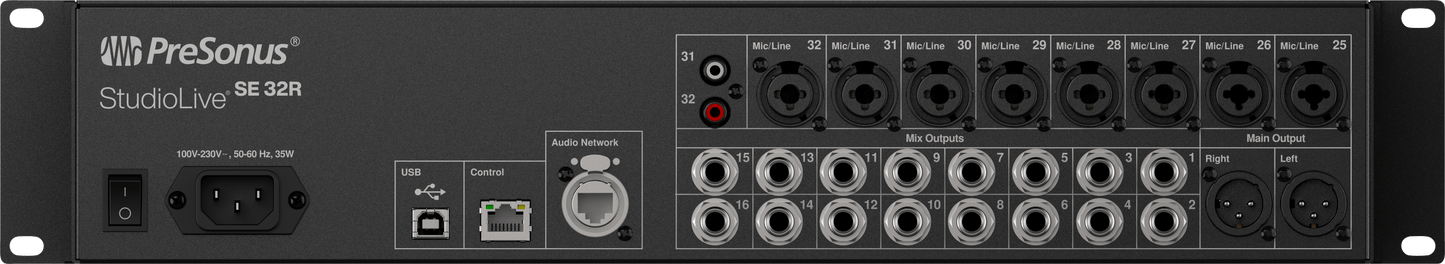

StudioLive® SE 32R Digital Rack Mixer
StudioLive® SE 32R Digital Rack Mixer
SKU:
2779200206
Regular price
$2,304.00
Regular price
$2,304.00
$2,304.00
Sale price
Unit price
per
Couldn't load pickup availability
Overview
40-channel digital rack mixer with 32 onboard XMAX-R recallable preamps, 16 FlexMixes, four dedicated subgroups and FX mixes, 24 DCAs, multitrack USB plus stereo SD recording, and Milan-certified AVB integration for live mixing, in-ear monitor rigs,
The StudioLive SE 32R combines 32 XMAX-R recallable preamps with 16 FlexMixes, 4 subgroups, 4 FX mixes, and 24 DCAs for full channel control. Continuous bidirectional 64x64 USB audio interface, onboard SD stereo recording, and Virtual Soundcheck with Capture software provide a complete recording and playback solution.
Milan-certified AVB networking ensures seamless integration with NSB stageboxes, EarMix 16M Personal Monitor mixers and other StudioLive Series III mixers. Per-channel source switching and wireless control with Universal Control and QMix-UC give engineers and performers maximum workflow flexibility.
Overview
Features
- 40-channel digital rack mixer with 32 XMAX-R recallable preamps
- 16 FlexMixes configurable as aux, subgroup, or matrix mixes
- 4 dedicated subgroups and 4 FX mixes with stereo returns
- 24 DCA groups for precise control
- Continuously bidirectional 64x64 USB 2.0 audio interface
- Onboard stereo SD recording
- Capture integration with Virtual Soundcheck
- Milan-certified AVB networking for Series III ecosystems
- Per-channel source switching (Analog, USB, SD, AVB)
- Universal Control remote mixing and Offline Editor
- QMix-UC personal monitor mixing
- Standalone, monitor mixer, or stagebox modes
- Perpetual license for Fender Studio Pro included
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
HIGH-CHANNEL FLEXIBILITY
32 onboard XMAX-R preamps with versatile FlexMix, subgroup, FX, and DCA routing.
PROFESSIONAL ROUTING AND MONITORING
Designed for mobility, versatility, and flexibility—on the road, on stage, or in the studio.
RECORDING MADE EASY
64x64 USB recording, onboard stereo SD, and Virtual Soundcheck with Capture and Fender Studio Pro software integration.
WIRELESS AND NETWORK-READY
Universal Control and QMix-UC put mixing in your hands while Milan-certified audio networking makes expanding your system easy.
FENDER STUDIO PRO INTEGRATION
Deep integration with Fender Studio Pro simplifies recording with direct preamp control and seamless switching between onboard and plug-in processing with Fat Channel XT.
Specs
Electronics
Headphone Jack
1/4" TRS Active Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
120V
VoltageRequirements
100-230 VAC, 50-60 Hz
General
Color
Black
Product Name
StudioLive® SE 32R Digital Rack Mixer, Black, NA
Series
StudioLive®
Hardware
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Inputs
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Measurements
Media Storage Capacity
SD Card: 2 GB; SDHC Card: 32 GB
Product Depth
12" (305mm)
Product Height
3.5” (90 mm)
Product Height/Length
3.5” (90 mm)
Product Weight
11.2 lbs. (5 kg)
Product Width
19" (483mm)
Refinement Weight
25-under
Miscellaneous
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Recording File Format
Stereo WAV
Supported Media Format
FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates
48 kHz, 44.1 kHz
Output
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Performance
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
SD Recorder Bit Depth
Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate
44.1 or 48 kHz
