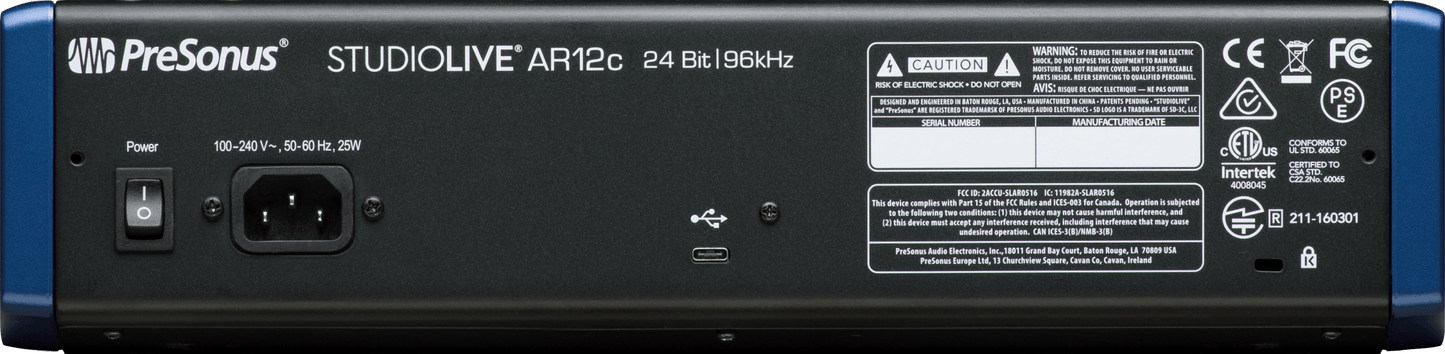

StudioLive® AR12c Analog Mixer
StudioLive® AR12c Analog Mixer
SKU:
2779200101
Regular price
$756.00
Regular price
$756.00
$756.00
Sale price
Unit price
per
Our pristine analog 14-channel USB-C compatible audio interface, analog mixer, and stereo SD recorder.
Couldn't load pickup availability
Overview
Don't let the classic analog mixer design fool you - the StudioLive® AR12c was built to record. Featuring a pristine analog front end with eight high-gain XMAX mic preamps and an 14x4, 24-bit, 96 kHz, USB-C™-compatible USB 2.0 audio interface, the StudioLive AR12c's hybrid design makes it simple to mix and record. Add in a musical 3-band analog EQ, mic/line boost for low-level sources including vintage synths, all-new digital effects with rich reverbs and lush delays, Bluetooth® connectivity, and a stereo SD recorder... and you have a mixing and recording powerhouse that fulfills the needs of both modern musicians and content creators.
Overview
Features
- 14x4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface; record every channel plus the main mix
- 2x2 SD recorder (record main mix); supports SD and SDHC formats up to 32 GB
- 14-channel analog mixer with:
- 8 balanced microphone inputs with XMAX mic preamps plus two instrument inputs, 12 balanced line level inputs, and 2 insert points
- Stereo Super Channel (Ch. 13/14) with Bluetooth®0 wireless, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
- Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
- Complete recording solution: Includes Capture™ live-recording software and Fender Studio Pro® Pro Perpetual License for Mac® and Windows
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
- Universal Control v5.1.1.113315 Download (Mac)
- Universal Control v5.1.1.113315 Download (Windows)
- Universal Control v5.1.0.112930 Download (Mac)
- Universal Control v5.1.0.112930 Download (Windows)
- Universal Control v5.0.1.111903 Download (Windows)
- Universal Control v5.0.1.111903 Download (Mac)
- Universal Control v5.0.0.110112 Download (Mac)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Onboard effects.
The StudioLive AR12c mixer’s onboard effects processor lets you add high-quality reverb, delay, or chorus to any channel for a professional monitor mix. Like what you hear in your headphones? Record the main mix and capture the effects mix, too—with or without the dry channels—to blend with your multitrack recording. Experiment in post-production to your heart's content.
One-click recording
The StudioLive AR12c is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Fender Studio Pro!
Fender Studio Pro DAW Software Included.
Your hardware registration includes a perpetual License to Fender Studio Pro.
Specs
Phantom Power
+48 VDC
Signal Level Led
Signal: -30 dBFS (Pre-EQ) Clip: -3.0 dB Before Clip (Pre or Post-EQ)
Voltage
100-120V
VoltageRequirements
100-230 VAC, 50-60 Hz
Color
Blue
Product Name
StudioLive® AR12c Analog Mixer, Blue
Series
StudioLive®
Digital Audio USB Recording Port
USB 2.0
Instrument Input Connection Type
1/4” TS Female, Unbalanced, Hi-Z
Instrument Inputs Dynamic Range
> 108 dB (Mid Gain, Unweighted)
Instrument Inputs Frequency Response
20 Hz to 20 kHz, +0.5/-1.5 dB
Instrument Inputs Gain Range
43 dB, ±1 dB (+12 to +55 dB)
Instrument Inputs Maximum Level
+9 dBu ±1.0 dB (Minimum Gain, 1 kHz@0.5% THD + N)
Line Input Connection Type
1/4" TRS, Balanced
Line Inputs Frequency Response
20 Hz to 20 kHz, +0.5/-1.5 dB
Line Inputs Gain Range
Mono: 40 dB, ± 1 dB, Stereo: 0 dB or 10 dB
Line Inputs Impedance
10 kΩ (Balanced)
Line Inputs Maximum Level
+26 dBu ±1.0 dB (Minimum Gain, 1 kHz@0.5% THD + N)
Line Inputs Signal To Noise Ratio
85 dB (+4 dBu)
Line Inputs Total Harmonic Distortion
<0.01% (1 kHz, -1 dBFS, A-Weighted)
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz, +55 dB Gain)
Microphone Preamp Equivalent Input Noise
<128 dBu
Microphone Preamp Frequency Response
20 Hz to 20 kHz, +0.5/-1.5 dB
Microphone Preamp Gain Control Range
43 dB (+12 to +55 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
+9 dBu ± 1.0 dB (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (+4 dBu)
Microphone Preamp Total Harmonic Distortion
<0.01% (Minimum Gain, A-Weighted)
Media Storage Capacity
SD Card: 2 GB; SDHC Card: 32 GB
Product Depth
15.56" (397 mm)
Product Height
3.5” (90 mm)
Product Height/Length
3.5” (90 mm)
Product Weight
11.9 lbs (5.4 kg)
Product Width
15" (381mm)
Refinement Weight
25-under
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Recording File Format
Stereo WAV
Supported Media Format
FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates
44.1, 48, 88.2, 96 kHz
Headphone Outputs Dynamic Range
>103 dB (A-Weighted)
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +0.5/-1.5 dB
Headphone Outputs Maximum Output
150 mW /Channel at 60 Ω
Headphone Outputs Total Harmonic Distortion
<0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted)
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
+18 dBu
Line Outputs Output Impedance
100 Ohms
Main And Line Outputs Dynamic Range
>108 dB (A-wtd)
Main And Line Outputs Frequency Response
20 Hz to 20 kHz, +0.5/-1.5 dB
Main And Line Outputs Total Harmonic Distortion
<0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted)
XLR Outputs Maximum Output Level
+24 dBu, ±1.0 dB
XLR Outputs Output Impedance
100 Ohms
Crosstalk (Adjacent Channels)
-85 dBu (Reference = +4 dBu, 20 Hz to 20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
105 dB (A-Weighted, 48 kHz)
SD Recorder Bit Depth
Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate
44.1 kHz
