Overview
16x2 Performance and Recording Digital Mixer
You’ll never run out of signal processors.
StudioLive 16.0.2 mixers provide plenty of DSP power, with no limitations, no shared resources, no figuring out what processing is available where. You have all of the processing available at all times, with no compromises or caveats. The unique Fat Channel provides a compressor, limiter, expander, and 3-band semi-parametric EQ on every channel and bus; a highpass filter on each channel; phase reverse for the channel mic preamps; a library of professionally crafted presets; and the ability to save and selectively recall processor settings. A stereo, 31-band graphic EQ sits on the main bus. To top it off, you get two 32-bit delay/reverb effects processors, each with its own dedicated mix bus and a library of useful effects presets.
Superior sound.
Connect a StudioLive 16.0.2 mixer and you’ll instantly hear details and clarity you’d expect to find only in a much more expensive console. StudioLive mixers operate at up to 48 kHz for high-definition mixing and recording. High-quality Burr-Brown converters on every input and output provide a best-in-class 118 dB of dynamic range so you’ll catch every high and low with great accuracy and no audible distortion. And our XMAX microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound.
Recording is in StudioLive 16.0.2’s DNA.
The StudioLive 16.0.2’s built-in 16x16 multitrack recording interface is tightly integrated with the rest of the mixer—not an afterthought we tacked on. All 16 channels continuously stream to your FireWire-connected Mac® or Windows® PC. Each channel can independently access its analog input or its dedicated digital return from your computer. And with StudioLive mixers, recording is simple and easy: Just launch the included, preconfigured Capture™ software for one-click recording of all channel inputs and your main mix. Or record with the included Studio One® Artist DAW—or any recording software that supports ASIO or Core Audio. Now you can record in the studio or at the gig with equal ease.
Integrated, multiplatform software for flexible control and one-click recording.
Only PreSonus StudioLive mixers are tightly integrated with an entire suite of state-of-the-art software. Mix on a Mac or Windows PC using Virtual StudioLive (VSL). Mix on an iPad® using StudioLive Remote. Control individual monitor mixes onstage with QMix® for iPhone®/iPod® touch. Completely automate virtual soundchecks and record shows with Capture™ for Mac and Windows. Tune your system to the room and watch for problems in your mix with VSL’s integrated Smaart® RTA and spectrograph. Edit, sweeten, and digitally release your recordings with Studio One Artist. StudioLive-series mixers and software work together to form a cohesive ecosystem that helps you achieve your creative vision.
Dedicated analog connections for predictable signal flow.

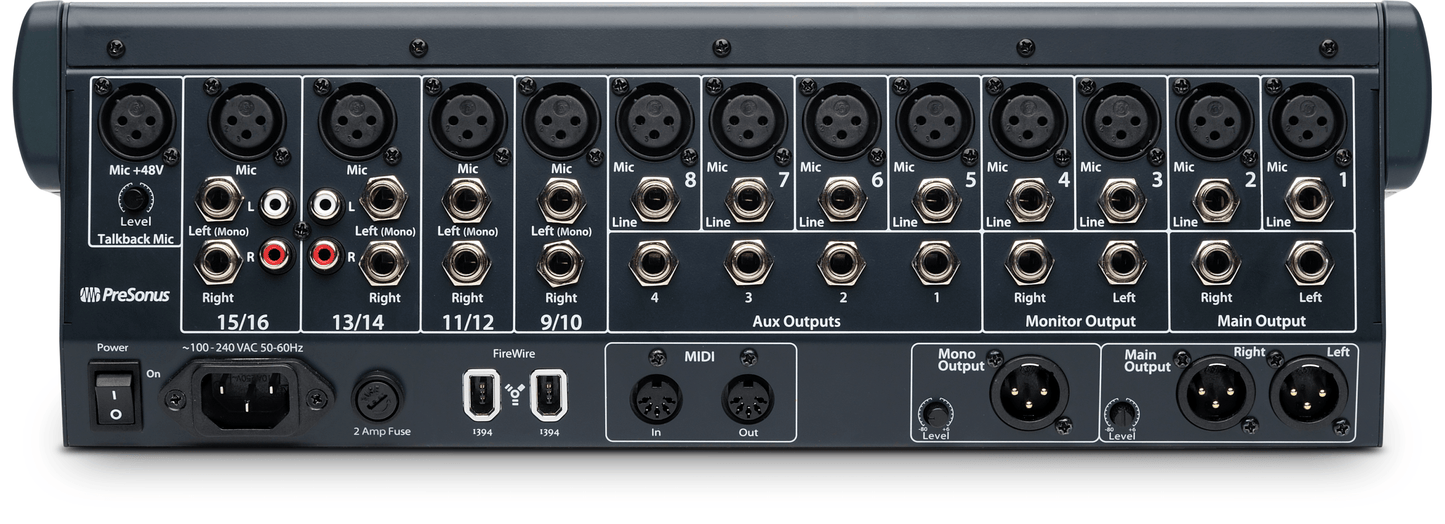

Take a look at back panel of a StudioLive 16.0.2 mixer, and you’ll find the robust connections you’d expect from an analog mixer: balanced mic inputs on each of the 8 mono channels; 8 balanced ¼-inch line inputs; 4 unbalanced RCA line inputs; and dedicated balanced outputs for each of the 4 aux buses and the main stereo bus. Every input channel and bus send has its own dedicated jack—no sharing, no compromises—so you always know what’s flowing from each output.
Add excitement to performances with MIDI control.
Being able to control the 16.0.2 from an iPad, iPhone, or iPod touch is cool — unless your hands are busy playing your instrument. That’s why the StudioLive 16.0.2 offers something even the bigger StudioLive AI-series consoles don't: MIDI In and Out. Use a MIDI footpedal or DAW to recall scenes using MIDI Program Changes, control the main output volume and effects level, mute effects between songs, switch from lots of reverb to a little bit of delay, and change the mix for a solo. You can even automate these features with a DAW! It’s a great way to make your performances more exciting and varied, even if you don’t have a separate soundperson.
Better mixing with StudioLive family values.
It's easy to love this portable powerhouse. To learn more, visit the Media tab on the upper section of this page and watch our StudioLive 16.0.2 videos. Better yet, try a StudioLive 16.0.2 at your nearest PreSonus dealer. You’ll see what we mean about intuitive ease-of-use. You’ll hear what we mean about Class A preamps, rich DSP effects, and overall sound quality. And you'll come to believe in StudioLive family values.
Includes Studio Magic Plug-in Suite.
This suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies — these are real-deal workhorses that you'll rely on for countless mixes.
Read more about the Studio Magic Plug-in Suite
Content and terms of the Studio Magic Plug-in Suite are subject to change.
Overview
Features
- 8 mono and 4 stereo channel inputs with 60 mm faders (12 faders)
- 4 auxiliary buses (pre/post-fader send) and 2 internal FX buses
- On all channels and buses: 3-band semi-parametric EQ, compressor, limiter, downward expander
- Stereo, 31-band graphic EQ on the main bus
- 16-in/16-out FireWire recording interface (24-bit/44.1 kHz and 48 kHz)
- MIDI I/O: control main and effects output levels, recall effects presets and Scenes, and serve as a MIDI interface
- Bundle for Mac® and Windows® includes PreSonus® Studio One® 3 Artist DAW, Capture™ live-recording software, Virtual StudioLive® bidirectional mixer-control software with Smaart Measurement Technology™. Free StudioLive Remote wireless-control software for iPad® and QMix® iPhone®/iPod® touch wireless aux-control software.
