Overview
The PreSonus® Studio Channel channel strip is a wonderful studio tool that's great for live performance, too. Featuring a tube preamp, VCA-based compressor, and three-band EQ, it delivers a huge variety of timbres. With XLR mic, balanced ¼-inch line, and unbalanced ¼-inch instrument inputs and balanced XLR and ¼-inch outputs, you can connect it to almost any audio interface, amp or PA.
The Class A preamp starts with a high-output 12AX7 tube for lots of headroom and big tone. Gain and Tube Drive controls enable a wide range of sounds, from transparent and clear to edgy and overdriven. A -20 dB pad, 80 Hz high-pass filter and polarity reverse let you tweak your signals.
Our VCA-based compressor is known for musicality and fast attack, with the ability to tame the fastest transients so you can record blazing-hot signals with accurate dynamics control. In addition to ratio, threshold, attack, release and gain controls, it offers an Auto Attack/Release feature with preset attack and release curves. The backlit VU meter displays gain reduction or output gain.
The three-band EQ is a precision tool that can be pre- or post-compressor, and you can bypass each stage independently. Custom-designed amps deliver sweet-sounding gain and cut for smooth highs, clear midrange and deep, solid lows. The midrange band is fully parametric, with variable Q, while the high- and low-frequency bands are semi-parametric, with Frequency and Gain controls, and can be shelving or peak bands.
Overview
Features
- Class A 12AX7 vacuum-tube mic/instrument preamplifier with Tube Drive control
- Gain control with +10 dB to +54 dB gain range
- 48V phantom power switch, 80 Hz high-pass filter, -20 dB pad, and Polarity-reverse switch
- Fully Variable VCA compressor with Attack, Release, Ratio, Threshold, and (makeup) Gain; Auto Attack/Release switch; Soft/Hard Knee switch; and Bypass switch
- 3-band parametric equalizer with Gain, Frequency and Q controls (mid band); Gain and Frequency controls and Shelving/Peak switches (low and high bands); switchable pre-/post-compressor; Bypass switch
- Backlit VU meter with Gain Reduction to Meter switch (gain reduction or output gain)

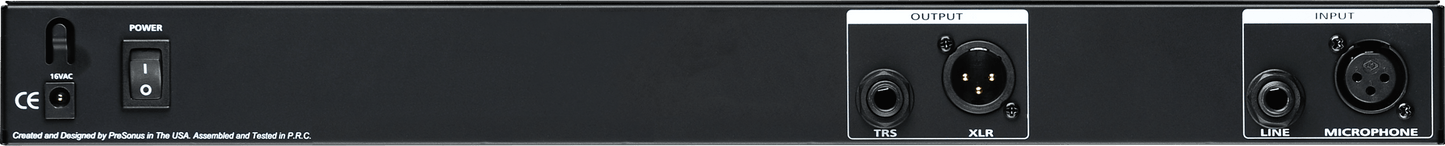

- 1 unbalanced ¼-inch instrument input (front panel), 1 balanced ¼-inch line input, and 1 balanced XLR mic input
- 1 balanced ¼-inch and 1 balanced XLR line output
- 1U 19-inch rack-mountable, rugged steel chassis with sealed, detented rotary controls
- External 16 VAC power supply
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Specs
Electronics
Channels
One
Phantom Power
+48 VDC
Power Consumption
12 VAC/1000 mA
Voltage
120V
General
Color
Black
Product Name
Studio Channel, Black, 120V
Series
Microphone Preamps
Hardware
Audio Faders
Output Fader: -80 dB to +10 dB
Inputs
Instrument Input Connection Type
1/4" TS
Line Input Connection Type
1/4" TRS Female
Line Inputs Impedance
10 kΩ
Microphone Input Connection Type
XLR Female, Balanced
Microphone Preamp Dynamic Range
>115 dB
Microphone Preamp Equivalent Input Noise
-126 dB
Microphone Preamp Frequency Response
10 Hz to 50 kHz
Microphone Preamp Gain
-6 dB to +66 dB
Microphone Preamp Input Impedance
10 kΩ
Microphone Preamp Noise Floor
-96 dBu
Microphone Preamp Total Harmonic Distortion
100% Tube Drive: <0.10%, 0% Tube Drive: <0.050%
Measurements
Product Depth
5.5" (139.7 mm)
Product Height
1.75" (44.45 mm)
Product Width
19" (483mm)
Miscellaneous
Metering
-20 dB to 0 dB (Analog VU)
Power Cable
16 VAC, External Power Supply
Output
Main And Line Outputs Maximum Level
-20 dBu to +6 dBu (Analog VU)
Main And Line Outputs Output Impedance
51Ω
Performance
Output Headroom
+22 dBu
Tubes
Preamp Tubes
1 x 12AX7
