Sceptre® S6 Studio Monitor
Sceptre® S6 Studio Monitor
Couldn't load pickup availability
Overview
The Sceptre® S6 two-way monitor combines a 6.5-inch low/mid-frequency driver and a 1-inch (25 mm), horn-loaded, high-frequency transducer into a single coaxial unit with aligned voice coils. Its advanced coaxial design, based on Fulcrum Acoustic's TQ™ Temporal Equalization, works integrally with a 32-bit, 96 kHz, dual-core processor to deliver clarity and coherence that has previously only been available in ultra-high-end systems. Add 180 watt, Class D biamplification; acoustic ports; a rich set of acoustic adjustments; and full speaker protection; and you have a new, affordable monitoring standard.
Overview
Features
- CoActual technology combines DSP time-correction and point-source design for symmetrical soundstage and micro-definition imaging
- Unique coaxial transducer integrates 6.5-inch midrange driver and 1-inch (25 mm) horn-loaded HF transducer with Coaxial Speaker Coherence Alignment
- 32-bit, 96 kHz, dual-core, active floating-point DSP provides critical Temporal Equalization™ with multiple FIR filters
- Acoustic-tuning controls: HF Driver Adjust (0 dB, +1 dB, -1.5 dB, -4 dB), Acoustic Space (0 dB, -1.5 dB, -3 dB, -6 dB), highpass filter (Off, 60 Hz, 80 Hz, and 100 Hz, -12 dB/octave slope), Sensitivity (+4 dBu to -10 dBV)
- 180W RMS, Class D biamplification with internal heat sink
- RF shielding, current-output limiting, and over-temperature protection
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
CoActual Speaker Design
CoActual speakers employ a HF driver placed in the middle of the LF driver for symmetrical response horizontally and vertically, increasing the sweet spot, clarity and imaging. An onboard DSP running Fulcrum Acoustics’ TQ™ algorithms provides detailed adjustments for an even mid-range with an inaudible crossover transition.
Accurate transient reproduction.
Consonant sounds in speech, percussion, and attack and decay of musical instruments are all transient signals. When reproduced accurately, the result is sonic transparency, definition, and intelligibility. With their excellent transient reproduction, CoActual speakers minimize distortion and produce clean, clear, consistent audio at any SPL.
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
10 kΩ
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Sceptre® S6 Studio Monitor, Black
Series
Sceptre®
Hardware
Audio Controls
Volume Range: A-Type Taper HF Control: Flat, +1, -1.5, -4 dB Low Cut: Flat, 60, 80 Hz, 100 Hz Acoustic Space: Flat, -1.5, -3, -6 dB
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Transducers
1" Titanium Diaphragm Compression Driver
LF Transducers
6.5” Glass-Reinforced Paper

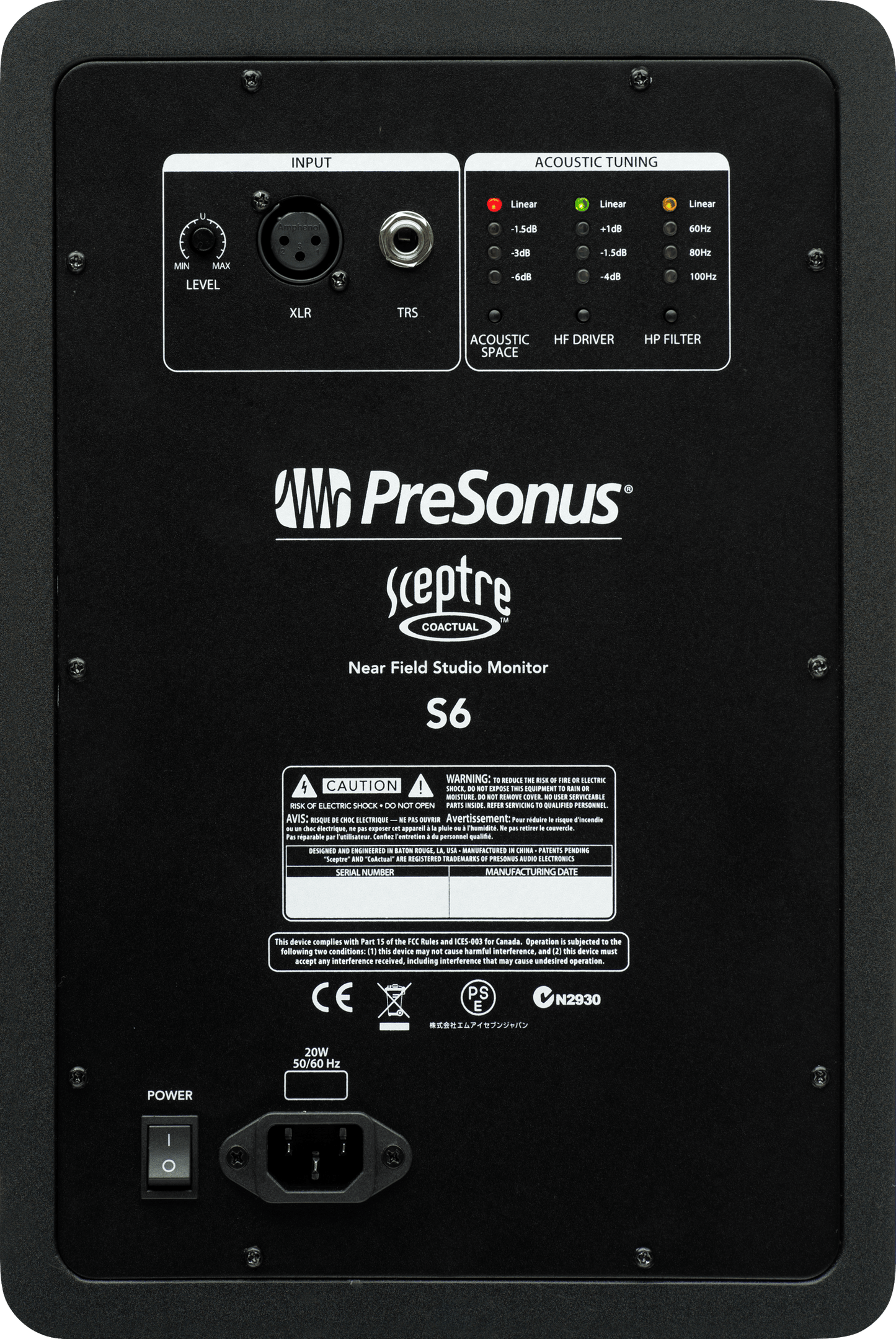

Monitor Inputs
1 x Balanced XLR, 1 x Balanced 1/4" TRS
Measurements
Product Depth
12.2" (30.1 cm)
Product Height
13.2" (33.5 mm)
Product Width
9" (22.9 cm)
Miscellaneous
Power Cable
IEC
Protections
RF Interference
Over-Current
Over-Voltage
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
External Mains Fuse
Performance
Peak SPL
109 dB (@ 1 meter)
Speakers
Crossover Frequency
2.2 kHz
