RC 500

RC 500

SKU: RC500
View full details

RC 500

      Overview

      Solid-State Channel Strip

      The RC 500 combines the custom-designed FET compressor and semi-parametric EQ circuits found in PreSonus’ highly lauded ADL 700 tube channel strip with a new ultra-low-distortion, high-gain, solid-state Class A preamplifier design that delivers consistent, repeatable, transparent, detailed audio. A balanced analog insert allows you to add external processors. The result is a top-of-the-line — yet very affordable — channel strip for professional recording engineers and recording musicians, with a sound that is reminiscent of classic, vintage solid-state preamps.

      Overview

      Features

      • Transformer-coupled, high gain microphone preamp with a Class A hybrid design
      • FET based compressor using hybrid detection methods with switching relay for hard bypass
      • 3-band semi-parametric equalizer with switching relay for hard bypass
      • +48V phantom power, 80 Hz highpass filter, and -20 dB pad

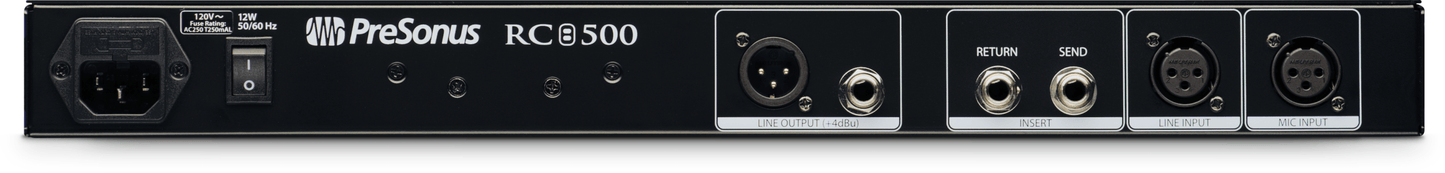

      • Front-panel ¼” instrument and rear-panel XLR microphone and line inputs with Input Select switch
      • Analog insert with balanced send and return
      • Transformer-coupled, high gain microphone preamp with a Class A hybrid design
      • FET based compressor using hybrid detection methods, with switching relays for hard bypass, fully variable attack (0.5 to 10 ms), release (30 to 500 ms), and threshold (-25 to +20 dBu) and a fixed ratio (3:1)
      • 3-band semi-parametric equalizer with switching relays for hard bypass
      • +48V phantom power, 80 Hz highpass filter, and -20 dB pad
      • Front-panel ¼” instrument and rear-panel XLR microphone and line inputs with Input Select switch
      • VU meter with selectable output level/gain reduction display
      • Analog insert with balanced send and return
      • High grade components: film capacitors, 1% tolerance resistors, and very low-distortion op amps
      • Master output control
      • Balanced output on XLR and ¼” TRS connectors
      • Internal toroidal power supply with IEC connector
      • Steel chassis


      Downloads

      Documentation

    • Owner's Manual - English
    • Tech Sheet - English
    • 2-Year Limited Non-Transferable Warranty (Multilingual)
