Overview
Clarity is king - and with the R65 V2s, you'll hear every single detail of your music - and no problematic trouble spots will escape your ear again! If you're mixing or mastering high-resolution audio, the R65 V2 will ensure that you hear every nuance, thanks to its custom 6.8-inch Air Motion Transformer (AMT) tweeter that responds to the subtlest waveforms and the highest frequencies. You'll hear all of the air and space that has become synonymous with high-resolution audiophile sessions. The AMT design also allows the R65 V2 to handle 8 to 13 times the projection area of more traditional tweeter designs - while its unique housing constrains this projection area strictly to the horizontal axis. The result is a very wide sweet spot with focused vertical dispersion - minimizing reflections from your desk, floor, or ceiling.
The 6.5-inch, custom coated, woven composite LF driver produces a more dynamic output than conventional designs, thanks to the rigid cone's ability to maintain a more constant dispersion pattern across its frequency response range, resulting in transparent sound with reduced reflections. Biamped with 140W RMS of Class A/B power - 75 W driving the woofer and 45W driving the tweeter - the R65 V2 ranks among the most powerful monitor speakers in its category.
A set of four acoustic tuning controls allow you to tailor the R65 V2's frequency response to compensate for the anomalies of nearly any mix environment - so you can expect predictable, consistent performance in the event you use them in more than one place.
Overview
Features
- 2-way active AMT tweeter design provides articulate high-frequency response, wide stereo imaging, and narrow vertical dispersion
- Custom-designed, 6.8-inch2, AMT tweeter responds to the subtlest waveforms and the highest frequencies for audiophile-grade air and space
- 6.5-inch LF drivers provide transparent mid- and low-frequency reproduction for clean, punchy bass
- Biamped, 140 W RMS (LF = 75 W, HF = 65 W) Class A/B power amplifier with switching power supply
- Acoustic tuning controls (Low cut, Mid, High, Acoustic Space) compensate for room acoustics and placement
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Set up your studio monitors for your room.

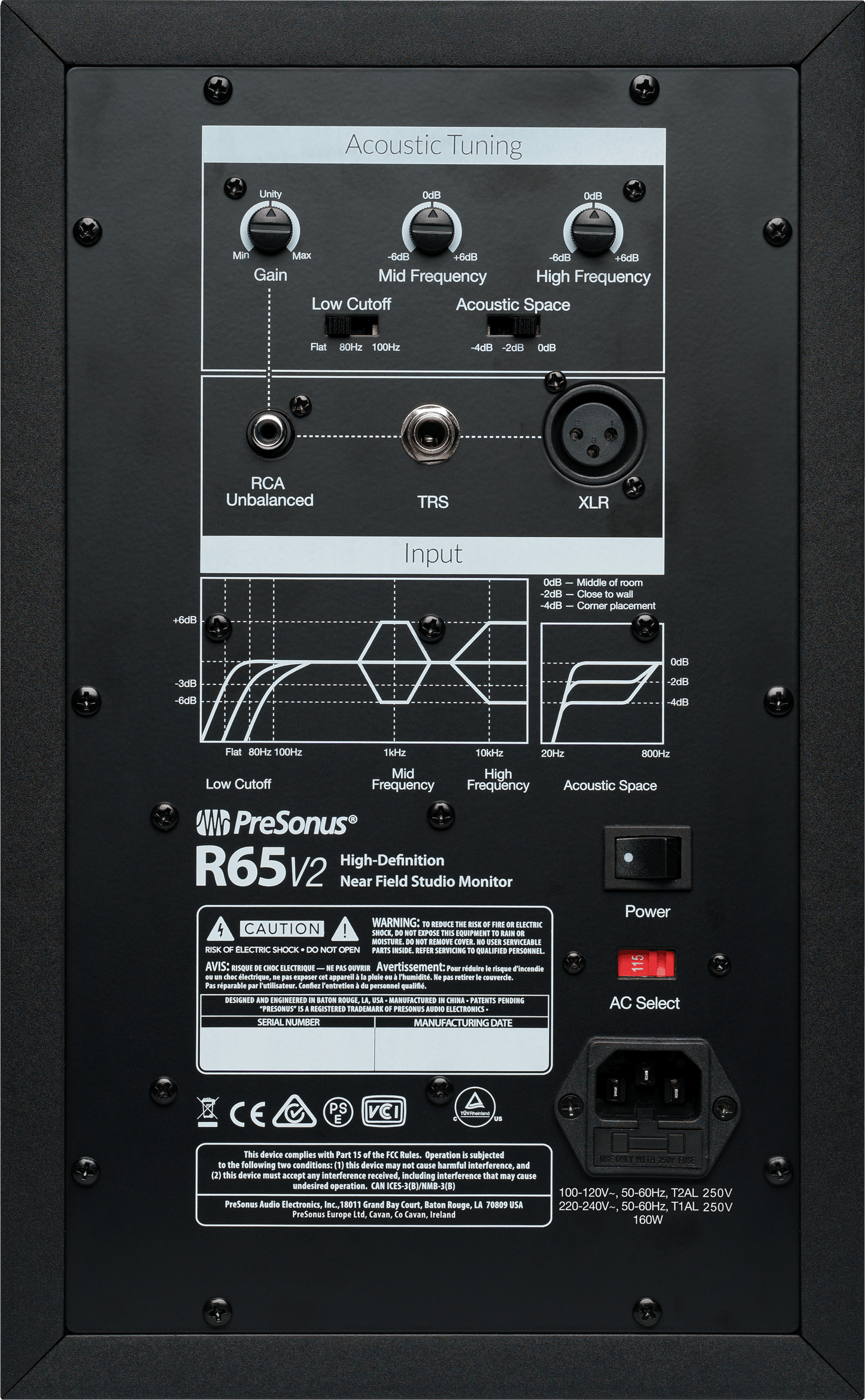

R65 V2 studio monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low-cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.
World-class recording software included.
R65 V2 studio monitors come with a special edition of PreSonus® Studio One™ Prime recording and production software, with the entire Studio Magic software suite enabled. Studio Magic includes over $1,000 USD worth of music software including plug-ins, loops, virtual instruments, effects and tutorials.
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
20 kΩ Balanced, 10 kΩ Unbalanced
Voltage
100-120V
General
Color
Black
Product Name
R65 V2 Studio Monitor, Black
Series
R
Hardware
Audio Controls
Volume Range: A-Type Taper High-Frequency Control: +/- 6dB Shelf at 10kHz Mid-Frequency Control: +/- 6dB at 1kHz Low Cut: (Flat) 80Hz, or 100Hz Acoustic Space: (Flat) -2dB or -4dB
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Transducers
AMT
LF Transducers
6.5" Woven Composite
Measurements
Product Depth
10.3" (26.16 cm)
Product Height
13" (33 cm)
Product Width
8" (20.3 cm)
Miscellaneous
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
External Mains Fuse
Output
Monitor Signal To Noise Ratio
>100 dB (A-Weighted)
Performance
Peak SPL
104 dB (at 1 Meter)
Speakers
Crossover Frequency
2.7 kHz
