Quantum 4848

$2,296.00
$2,296.00 $2,296.00
Sale Sold out

      Overview

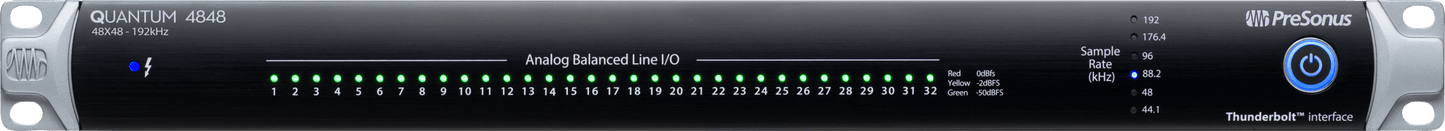

      Designed for the recording professional, the 48x48-channel Quantum 4848 is PreSonus®' fastest and best-sounding audio interface, achieving extremely low latency, thanks to advanced Thunderbolt™ audio drivers. Route audio from your vintage gear to your DAW and back without any signal degradation, capturing every nuance of your favorite boutique equipment using 32 channels of line-level inputs and outputs at sample rates up to 192 kHz. For a full 48-channels, integrate your favorite digital converter using 16 channels of ADAT I/O. Stack up to 4 Quantum 4848 interfaces via Thunderbolt to create a 192x192 system. The Quantum 4848 includes PreSonus Studio One® Professional DAW featuring Pipeline, allowing you to insert hardware processors into your Studio One session with automatic latency compensation and flexible routing capability.

      Overview

      Features

      • PreSonus®' fastest and best-sounding Thunderbolt audio interface
      • 24-bit resolution and up to 192 kHz sampling rate (>120 dB dynamic range)
      • 48x48; expandable to 192x192 by stacking up to 4 Quantums via Thunderbolt

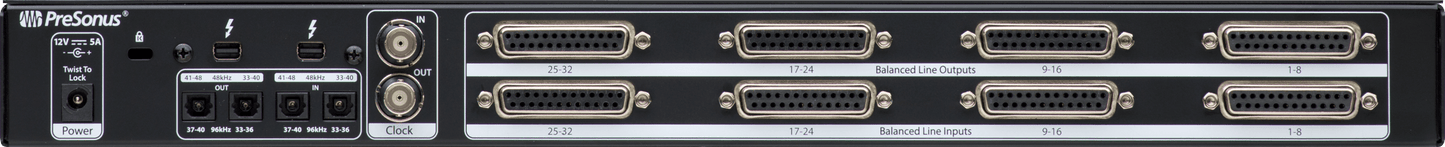

      • 32 channels of DB25 line-level I/O for connection to consoles, patch bays, etc.
      • Dual ADAT Optical I/O and BNC word clock I/O
      • Studio One® Professional recording and mastering DAW, and Studio Magic Plug-in Suite included
      • Native Studio One Pipeline plug-in provides easy integration of analog processors in a digital recording environment

      Downloads

      Support

    • Owner's Manual - Quantum 4848 (French)
    • Owner's Manual - Quantum 4848 (English)
    • Owner's Manual - Quantum 4848 (Spanish)
    • Safety Document (Multi-Lingual)
    • Installation Note For MacOS - Quantum 4848 (English)
    • Owner's Manual - Quantum 4848 (German)
    • 2-Year Limited Non-Transferable Warranty (Multilingual)
    • Universal Control 4.5 Milestone Release Notes - English
    • Universal Control Software Reference Manual - English

      • Resources

    • Universal Control v4.5.0.102825 (Mac)
    • Universal Control v4.5.0.102825 (Windows)
    • Universal Control v4.3.3.100963 (Mac)
    • Universal Control v4.3.3.100963 (Windows)
    • Universal Control v4.3.2.100484 (Mac)
    • Universal Control v4.3.2.100484 (Windows)
    • Universal Control v4.3.1.100005 (Mac)
    • Need an older version? Click here

      • Highlights

      Studio One Pro 7 DAW Software License Included.

      Your hardware registration includes a Studio One Pro 7 perpetual license (yours to keep) and 12 months of access to all the add-ons, exclusive content, and extras in Studio One Pro+.

      Specs

      Electronics

      Connectivity

      Thunderbolt

      Headphone Jack

      1/4” TRS Female, Stereo, Unbalanced

      Inputs

      Four - DB25 (Tascam Format), Balanced

      Voltage

      120V

      General

      Color

      Black

      Product Name

      Quantum 4848, Black

      Series

      Quantum

      Inputs

      Line Inputs Dynamic Range

      > 118 dB (A-Weighted, Minimum Gain)

      Line Inputs Frequency Response

      20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.10 dB, Unity Gain, 96 kHz)

      Line Inputs Impedance

      10 kΩ

      Line Inputs Maximum Level

      +18 dBu (Balanced, Minimum Gain)

      Line Inputs Total Harmonic Distortion

      < 0.005% (1 kHz, Minimum Gain)

      Measurements

      Product Depth

      7" (17.8 cm)

      Product Height

      1.75" (44.45 mm)

      Product Width

      19" (483mm)

      Miscellaneous

      Power Cable

      12 VDC, External Power Supply

      Supported Sample Rates

      44.1, 48, 88.2, 96, 176.4, 192 (kHz)

      Output

      Line Outputs Connection Type

      DB25 (Tascam Format), Impedance Balanced, DC Coupled

      Line Outputs Maximum Output Level

      +18 dBu (Balanced)

      Main And Line Outputs Dynamic Range

      >118 dB (A-Weighted)

      Main And Line Outputs Frequency Response

      20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.15 dB, Unity Gain, 96 kHz)

      Main And Line Outputs Total Harmonic Distortion

      <0.0035% (1 kHz, +4 dBu)

      Performance

      Crosstalk (Input to Input)

      < -110 dB

      Crosstalk (Output to Output)

      < -115 dB

      Digital Audio Bit Depth

      24 bits

      Digital Audio Dynamic Range

      ADC Dynamic Range: 120 dB (A-Weighted), DAC Dynamic Range: 120 dB (A-Weighted)
