      Overview

      A great choice for a wide variety of recording environments, the 26x32-channel Quantum is PreSonus®' fastest and best-sounding audio interface, taking advantage of the high-speed Thunderbolt™ bus and a no-frills, direct-to-DAW (no DSP added) signal path to achieve extremely low latency. Two combo mic/instrument/line inputs and 6 mic/line inputs with recallable XMAX preamps combine with cutting-edge 24-bit, 192 kHz converters with 120 dB of dynamic range to deliver superb audio quality. For more I/O channels, simply stack up to 4 Quantum interfaces via Thunderbolt to create a monster 96x96 system. You also get MIDI and word clock I/O. Using the included Studio One Artist DAW or UC Surface control software, you can remote-control the preamps and many other features. To top it off, Quantum owners get the Studio Magic Plug-in Suite free and can upgrade to Studio One Professional for 50% off.

      Overview

      Features

      • PreSonus®' fastest and best-sounding audio interface
      • Uses high-speed Thunderbolt™ bus
      • 24-bit resolution and up to 192 kHz sampling rate (120 dB dynamic range)
      • 26x32; expandable to 96x96 by stacking up to four Quantums via Thunderbolt
      • 2 combo mic/instrument/line inputs and 6 mic/line inputs, with recallable XMAX preamps

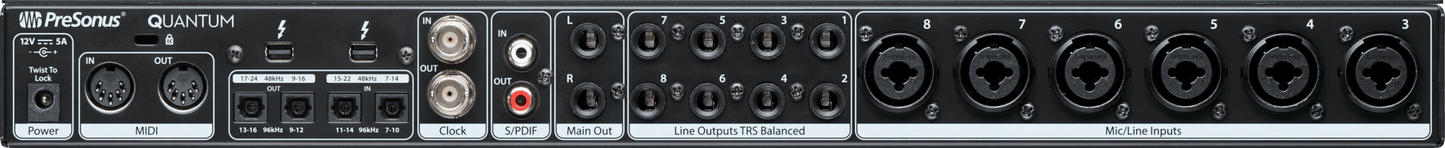

      • Dual ADAT Optical, S/PDIF, MIDI, and BNC word clock I/O
      • Studio One® Artist and Studio Magic Plug-in Suite included; upgrade to Studio One Professional for 50% off

      Downloads

      Support

    • Quick Start Guide - Multi-Lingual
    • Owner's Manual - Spanish
    • Owner's Manual - French
    • Installation Note For MacOS - Quantum (English)
    • 2-Year Limited Non-Transferable Warranty (Multilingual)
    • Owner's Manual - English
    • Owner's Manual - German
    • Owner's Manual - Bulgarian
    • Owner's Manual - Estonian
    • Owner's Manual - Czech
    • Owner's Manual - Finnish
    • Owner's Manual - Greek
    • Owner's Manual - Italian
    • Owner's Manual - Croatian
    • Universal Control 4.5 Milestone Release Notes - English (Updated)
    • Universal Control Software Reference Manual - English
    • Owner's Manual - Lithuanian
    • Owner's Manual - Dutch
    • Owner's Manual - Latvian
    • Owner's Manual - Polish
    • Owner's Manual - Portuguese
    • Owner's Manual - Romanian
    • Owner's Manual - Swedish
    • Owner's Manual - Slovak
    • Owner's Manual - Slovenian

      • Resources

    • UC Surface Android v4.5.0.102835
    • QMix-UC v3.2.2.92582 (Android)
    • QMix-UC v3.2.1.90847 (Android)
    • UC Surface Android v3.6.4.87069
    • UC Surface Android v3.6.2.85277
    • UC Surface Android v3.5.0.64605 64-Bit
    • UC Surface Android v3.5.0.64605 32-Bit
    • Need an older version? Click here

      • Highlights

      Studio One Pro 7 DAW Software Access Included.

      Your hardware registration includes a 6-month stackable membership to Studio One Pro+ featuring unlimited access to the latest version of Studio One Pro and all the extras.

      Specs

      Electronics

      Connectivity

      Thunderbolt

      Headphone Jack

      1/4” TRS Female, Stereo, Unbalanced

      Phantom Power

      +48 VDC

      Voltage

      100-120V

      General

      Color

      Black

      Product Name

      Quantum, Black

      Series

      Quantum

      Inputs

      Instrument Inputs Dynamic Range

      > 106 dB (A-Weighted, Minimum Gain)

      Instrument Inputs Frequency Response

      20 Hz to 20 kHz (±0.2 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.6 dB, Unity Gain, 96 kHz)

      Instrument Inputs Gain Range

      60 dB

      Instrument Inputs Maximum Level

      +15 dBu (Unbalanced, Minimum Gain)

      Line Inputs Dynamic Range

      > 118 dB (A-Weighted, Minimum Gain)

      Line Inputs Frequency Response

      20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.10 dB, Unity Gain, 96 kHz)

      Line Inputs Impedance

      10 kΩ

      Line Inputs Maximum Level

      + 18 dBu (Balanced, Minimum Gain)

      Line Inputs Total Harmonic Distortion

      < 0.005% (1 kHz, Minimum Gain)

      Microphone Input Connection Type

      XLR Female (Combo), Balanced

      Microphone Preamp Dynamic Range

      > 110 dB (A-Weighted, Minimum Gain)

      Microphone Preamp Equivalent Input Noise

      < -131 dBu (Maximum Gain, 40Ω, 22 kHz BW, A-Weighted)

      Microphone Preamp Frequency Response

      20 Hz to 20 kHz (±0.15 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.22 dB, Unity Gain, 96 kHz)

      Microphone Preamp Gain Control Range

      60 dB

      Microphone Preamp Input Impedance

      1.6 kΩ

      Microphone Preamp Maximum Input Level

      +10 dBu (Balanced, Minimum Gain)

      Microphone Preamp Total Harmonic Distortion

      < 0.005% (1 kHz, Minimum Gain)

      Measurements

      Product Depth

      7" (17.8 cm)

      Product Height

      1.75" (44.45 mm)

      Product Width

      19" (483mm)

      Miscellaneous

      Supported Sample Rates

      44.1, 48, 88.2, 96, 176.4, 192 (kHz)

      Output

      Headphone Outputs Dynamic Range

      > 110 dB (A-Weighted)

      Headphone Outputs Frequency Response

      20 Hz to 20 kHz, +/-0.5 dB

      Headphone Outputs Total Harmonic Distortion

      < 0.03% (1 kHz)

      Line Outputs Connection Type

      1/4" TRS Female

      Main And Line Outputs Dynamic Range

      > 118 dB (A-Weighted)

      Main And Line Outputs Frequency Response

      20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz), 20 Hz to 40 kHz (±0.15 dB, Unity Gain, 96 kHz)

      Main And Line Outputs Maximum Level

      +18 dBu (Balanced)

      Main And Line Outputs Total Harmonic Distortion

      < 0.0035% (1 kHz, +4 dBu)

      Main Outputs Connection Type

      1/4" TRS Female

      Performance

      Digital Audio Bit Depth

      24 bits

      Digital Audio Dynamic Range

      ADC Dynamic Range: 120 dB (A-Weighted), DAC Dynamic Range: 120 dB (A-Weighted)
