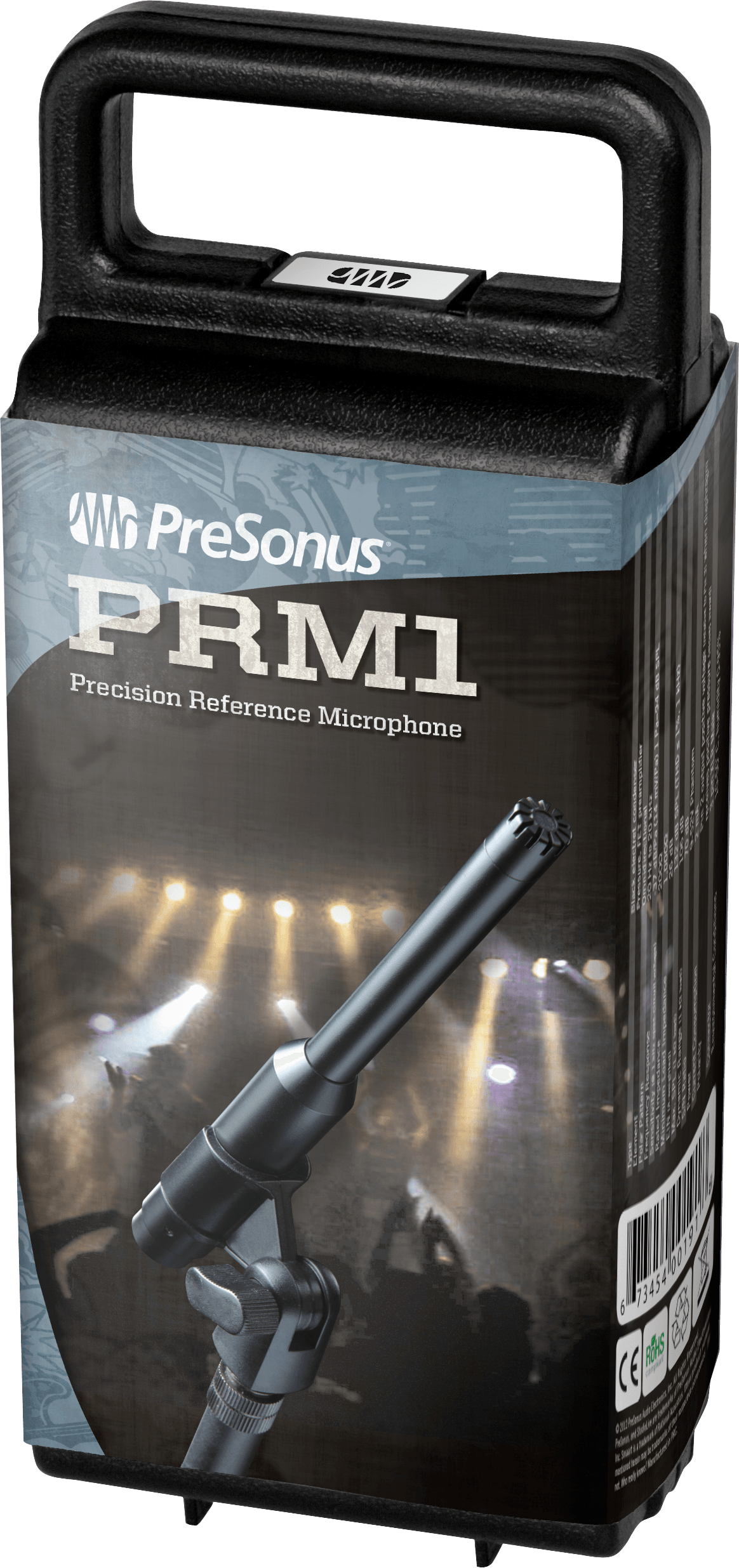

PRM1 Precision Reference Microphone

PRM1 Precision Reference Microphone

SKU: 2777300105
$164.00
$164.00 $164.00
Sale Sold out

Our precision reference microphone.
View full details

PRM1 Precision Reference Microphone

$164.00
$164.00 $164.00
Sale Sold out

      Overview

      The PRM1 is a special type of condenser microphone that provides an accurate reproduction of a room's sound characteristics for use with audio-analysis tools such as real-time analyzers (RTAs) and spectrographs. It has an omnidirectional polar pattern and exhibits linear frequency response between 20 Hz and 20 kHz, so it won't color the sound. With this mic and PreSonus® UC Surface multi-touch mixer-control software with Smaart Measurement Technology™, PreSonus StudioLive digital mixer owners can have a powerful and affordable audio-analysis and correction system.

      Overview

      Features

      • ¼-inch, pre-polarized electret-condenser capsule
      • Linear frequency response between 20 Hz and 20 kHz
      • Omnidirectional polar pattern
      • All-metal chassis
      • Comes with a clip, foam windscreen, and hard case

      Downloads

      Documentation

    • Owner's Manual - English
    • 2-Year Limited Warranty (Multilingual)
    • Need a different document? Click here

      • Specs

      Electronics

      Output Impedance

      200Ω

      Phantom Power Requierments

      9 - 52V

      Power Consumption

      2 mA

      General

      Color

      Black

      Product Name

      PRM1 Precision Reference Microphone, Black

      Series

      Measurement

      Hardware

      Microphone Element

      Pressure, FET Preamplifier

      Microphone Types

      Back-Electret Condenser

      Measurements

      Product Height

      7.56” (192 mm)

      Product Width

      0.83” (21 mm)

      Miscellaneous

      Commodity Code

      8518100090

      Performance

      Dynamic Range

      106 dB (1 kΩ Load)

      Maximum SPL

      132 dB SPL (THD ≤ 1%, 1 kHz) (1 kΩ Load)

      Microphone Frequency Response

      20 Hz to 20 kHz

      Microphone Impedance

      1000Ω

      Microphone Sensitivity

      37 dB/Pa (14 mV/Pa) 1 Pa=94 dB SPL (at 1 kHz Open-Circuit Voltage)

      Polar Patern

      Omnidirectional
