Overview
With its intuitive layout, extensive features and I/O and PreSonus®' famed sound quality, the Monitor Station V2 provides a versatile, convenient and affordable solution for managing your studio monitoring system from your desktop. Switch quickly and easily between up to four audio sources, including two pairs of balanced ¼-inch inputs and a third input channel that can be fed from an S/PDIF digital input (up to 96 kHz), unbalanced RCA Aux inputs with gain control and a ⅛-inch TRS unbalanced input. A button switches between the analog Aux and digital S/PDIF inputs.
Audition on up to three stereo pairs of speakers, each with separate level control. All speakers can be available, or one pair at a time, or choose between speakers A and B, with output C active to feed a subwoofer. You can set each set of speakers' level individually so when you switch between speakers, your monitoring level stays the same.
Four loud, clear ¼-inch TRS headphone outs ensure everyone hears every note. Each headphone out has a Main/Cue source selector and individual output-level control. A built-in, electret-condenser Talkback mic let you communicate with the musicians. A flaming red Talk button activates the mic and attenuates the cue signal. Eight-segment, three-color LED meters indicate left and right signal levels and can be set in for +4 dB, +10 dB, or +18 dB levels.
So take control of your monitoring system the way the pros do with the PreSonus Monitor Station V2!
Overview
Features
- 2 Stereo pairs of ¼-inch TRS inputs, 1 Stereo pair of RCA Aux inputs with level control and 1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)

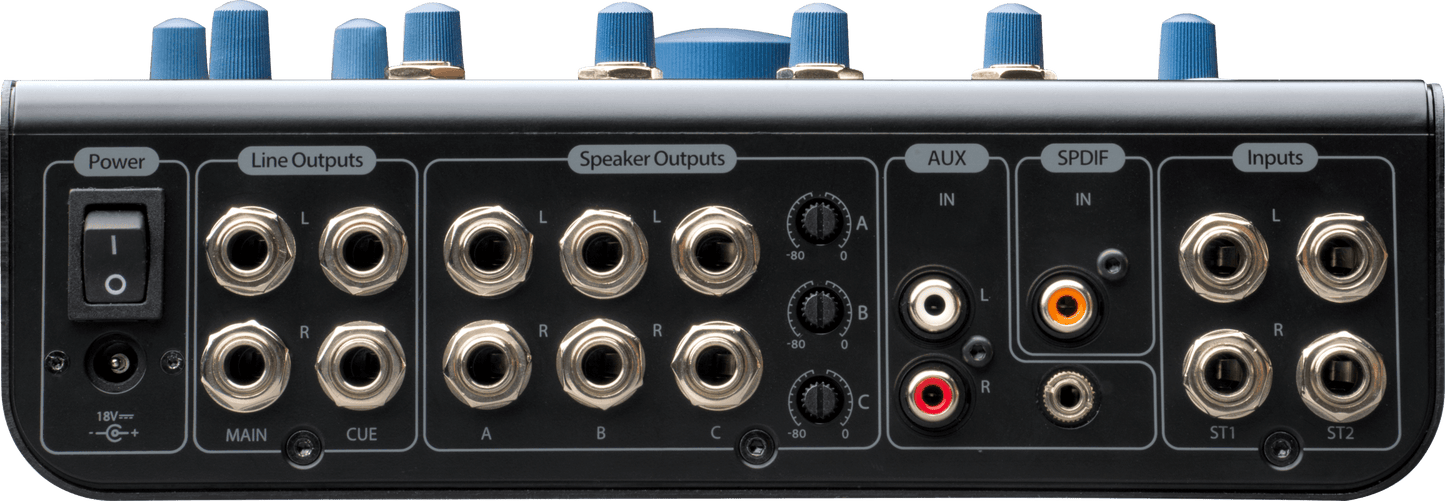

- 3 Stereo pairs of ¼-inch TRS speaker outputs with level controls, 1 Stereo pair of ¼-inch TRS Main outputs and 1 Stereo pair of ¼-inch TRS Cue outputs
- 4 ¼-inch TRS screaming-loud stereo headphone outputs
- Large Main level control
- 3 Individual Main Source (ST1, ST2, Aux) select switches
- 3 Individual Speaker Select switches
- Cue section with Source select (ST1, ST2, Aux) and output-level control
- Main Mute, Mono, and Dim switches with variable Dim attenuation
- 8-segment color LED input meters with selectable reference level
- Built-in electret-condenser talkback microphone with input-gain control and Talkback button
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Additional controls.
The Monitor Station V2 offers many features to customize your monitoring system. A Mono switch sums the stereo outputs to check for phase problems. A large knob controls the main speaker output level (but not the main line-level outs), and a Dim switch lets you reduce the speaker output by a variable amount. You can mute the speakers as well.
Specs
Footswitch
NA
VoltageRequirements
100-240 VAC, 50-60 Hz
Color
Black
Product Name
Monitor Station V2 Monitoring Controller, Black
Series
Monitoring Controllers
Microphone Types
Electret Condenser
SPDIF Connection Type
RCA 75Ω Coax
Speaker Output Connection Type
1/4"
Auxiliary Input Connection Type
RCA Active, Unbalanced
Auxiliary Input Frequency Response
10 Hz to 50 kHz
Auxiliary Input Gain Range
80 dB to +10 dB
Auxiliary Input Impedance
47.5 kΩ
Auxiliary Input Signal To Noise Ratio
>115 dB
Auxiliary Input Total Harmonic Distortion
<0.01%
Line Input Connection Type
1/4" TRS, Balanced
Line Inputs Frequency Response
10 Hz to 65 kHz
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+22 dBu
Line Inputs Signal To Noise Ratio
>105 dB
Line Inputs Total Harmonic Distortion
<0.0075%
Product Depth
8.5" (21.6 cm)
Product Height
2.5" (63.5 mm)
Product Height/Length
2.5" (63.5 mm)
Product Width
9" (22.9 cm)
Power Cable
External DC Transformer/Internal Line, 18 VDC
Cue Output Connection Type
1/4"
Cue Output Dim Attenuation
-20 dB (Talkback Activated)
Cue Output Gain Range
-80 dB to 0 dB
Headphone Outputs Frequency Response
10 Hz to 50 kHz
Headphone Outputs Maximum Output
150 mW / channel
Main And Line Outputs Frequency Response
10 Hz to 50 kHz
Main And Line Outputs Output Impedance
51Ω
Main And Line Outputs Total Harmonic Distortion
<0.01%
Main Outputs Connection Type
1/4" TRS, Balanced
SPDIF Maximum Output
+18 dBu
SPDIF Total Harmonic Distortion
0.0025% (1 kHz @ -1 dBFS)
Microphone Gain Range
+15 to +55 dB
Microphone Sensitivity
-42 dB
SPDIF Supported Sample Rates
44.1, 48, 88.2, 96 kHz
Speaker Output Dim Attenuation
-30 dB to -6dB
Speaker Output Main Level Range
-80 dB to 0 dB
Speaker Output Trim Range
-80 dB to 0 dB
