Eureka

      Overview

      Of course the Eureka provides all of the secondary features you need in a preamp/channel strip. A 20 dB pad lets you tame hot input signals, and a high-pass filter attenuates all frequencies below 80 Hz by 12 dB. Polarity reverse enables you to deal with phase problems when using open mics.

      Try the Eureka. Like the great Archimedes, you’ll be shouting, “I have found the solution!”

      Overview

      Features

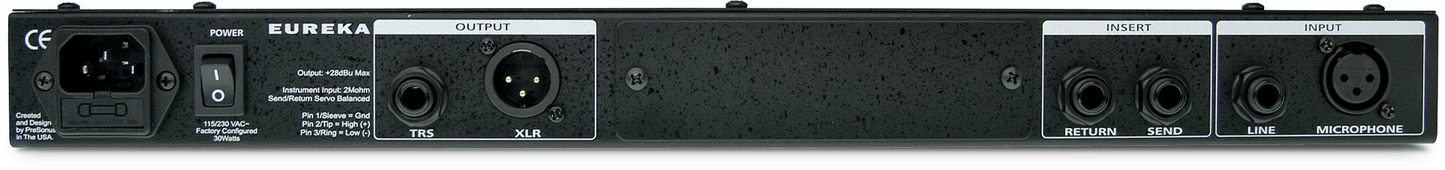

      • 1 unbalanced ¼” instrument input (front panel)
      • 1 balanced ¼” line input
      • 1 balanced XLR mic input
      • 1 balanced ¼” line output
      • 1 balanced XLR line output
      • 1 balanced ¼” insert send (output)
      • 1 balanced ¼” insert return (input)
      • Attack, Release, Ratio, Threshold, and (makeup) Gain
      • Soft/Hard Knee switch
      • Bypass switch
      • Internal sidechain with variable (10 Hz to 10 kHz) high-pass filter
      • Gain, Frequency, and Q controls
      • Switchable pre-/post-compressor
      • Bypass switch
      • Gain control with +52 dB of gain for the mic input and +44 dB of gain for the instrument input
      • 48V phantom power
      • 80 Hz high-pass filter
      • -20 dB pad
      • Polarity-reverse switch
      • Variable microphone input impedance (50, 150, 600, 1,500, 2,500 Hz)
      • Variable preamp Saturate control (simulates tape saturation and tube warmth)
      • Line-input select button
      • Input clip indicator (LED)
      • Master level control
      • Meter Output Gain or Gain Reduction
      • 1 digital expansion-card slot for optional AD192 24-bit/192 kHz AES/EBU and S/PDIF digital output card (discontinued)
      • 1U 19” rack-mountable, rugged steel chassis
      • Sealed, detented, metal rotary controls
      • Internal power supply with standard IEC connector
