Eris® Sub8 Studio Subwoofer
Eris® Sub8 Studio Subwoofer
Eris® Sub8 Studio Subwoofer
Overview
Adding a subwoofer to full-range speakers enables you to hear the low-frequency foundation of your mix more accurately so you can make better-informed decisions and create more translatable mixes. The surprisingly loud 100 watt Eris Sub8 drops down to a molar-rattling 30 Hz, so you'll hear the full sonic spectrum and produce better mixes. For EDM and hip-hop producers, in particular, a subwoofer is a must-have.
Although compatible with a variety of full-range studio monitors, the PreSonus® Eris® Sub8 compact studio subwoofer was designed to complement the voicing and frequency response of Eris-series studio monitors and media reference monitors. The Eris Sub8 lets you naturally extend the reach of your Eris E3.5, E4.5, E44, E5 and E5 XT monitors in a manner appropriate to smaller rooms - exactly where these monitors excel.
Flexible connectivity options and onboard controls let you effortlessly create a 2.1 monitoring system and tune it to your room. Set the input gain and even invert the polarity. A highpass filter and lowpass filter (crossover) control ensure your Eris Sub8 starts working at the precise frequency where your main monitors stop, avoiding the flabby, smudged, low-end mess that occurs without a crossover. To top it off, you get a full suite of music recording and production software worth more than $1,000.
So add a PreSonus Eris Sub8 subwoofer to your sound system and hear, with precision accuracy, the powerful low-frequency sound you've been missing.
Overview
Features
- 8-inch, front-firing, paper-composite low-frequency transducer with high-elastisity rubber surround
- Class AB amplifier: 100W peak (50W RMS) power
- Input gain control (-30 dB to +6 dB, continuously variable)
- Continuously variable lowpass filter (50 Hz to 130 Hz)
- Defeatable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Eris Sub8 outputs to the main speakers

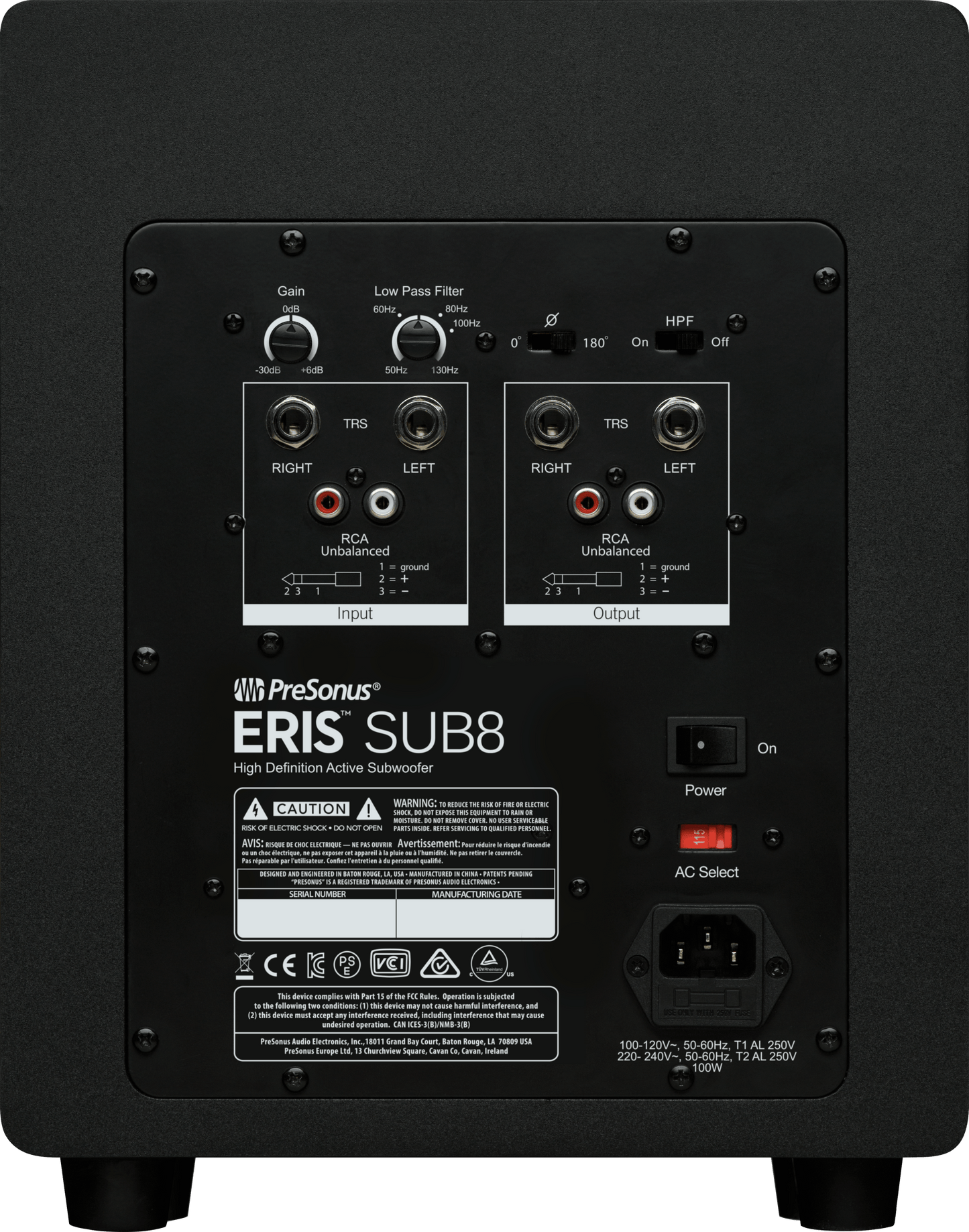

- Left and right, balanced ¼-inch TRS and unbalanced RCA main inputs
- Left and right balanced ¼-inch TRS and unbalanced RCA pass-through outputs for connecting satellite speakers
- Polarity invert switch
- Protection: RF interference, Output-current limiting, Over-temperature, Turn-on/off transient, Subsonic filter, External mains fuse
- Includes Studio Magic, a suite of over $1000 USD worth of music production software
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
World-class recording software included.
Eris® Sub8 studio subwoofers come with a special edition of PreSonus® Studio One® Prime recording and production software, with the entire Studio Magic software suite enabled. Studio Magic includes over $1,000 USD worth of music software including plug-ins, loops, virtual instruments, effects and tutorials.
Specs
Accessories
Footswitch
NA
Electronics
Power Consumption
100 Watts
Voltage
100-120V
General
Color
Black
Product Name
Eris® Sub8 Studio Subwoofer, Black
Series
Eris®
Hardware
Audio Controls
Input Gain Range: -30 to +6 dB Polarity Switch: 0° or 180° Low Pass Filter Control: 50 Hz to 130 Hz High Pass Filter Switch: On/Off
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
Monitor Inputs
2 X Balanced 1/4” TRS, 2 x Unbalanced RCA
Power Amplifier Type
Class AB
Measurements
Product Depth
12.75" (32.4 cm)
Product Height
11.6" (29.4 cm)
Product Width
9.84" (250 mm)
Miscellaneous
Low Pass Filter Frequency
50 – 130 Hz (Variable)
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
External Mains Fuse
Output
Monitor Signal To Noise Ratio
>95 dB (A-Weighted)
Performance
Peak SPL
113 dB
