Eris® Pro 4 (Single)
Eris® Pro 4 (Single)
Couldn't load pickup availability
Overview
The Eris Pro 4 reference monitors employ a single point-source coaxial design for clear and accurate sound reproduction. This design provides superior phase alignment between components and delivers a wide sweet spot, precise stereo imaging, and symmetrical dispersion patterns - unique advantages for Dolby Atmos immersive rooms as well as stereo mix environments.
The Eris Pro 4 also delivers finely detailed transient response, and stunning dynamics that create a natural and less fatiguing listening experience. A 1-inch ultra-low mass, silk-dome tweeter ensures snappy, accurate transient reproduction, while a 4.5-inch woven-composite woofer offers tight, clear bass, with plenty of punch and no flab. A ported enclosure and 80 Watts of power allows the Eris Pro 4 to reach down to 50 Hz.
Acoustic tuning controls let you configure the Eris Pro 4 for your room and three-way Acoustic Space tuning can compensate for the effects of speaker placement against a wall or in a corner.
Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. You'll have no problem hooking your Eris speakers up to virtually anything. Lastly, provisions for wall and ceiling mounts make it easy to integrate Eris Pro 4 monitors into any stereo or multi-channel system.
Sold individually.
Overview
Features
- Single point-source coaxial design for wider sweet spot and better phase alignment
- 4.5-inch woven composite low-frequency driver
- 1-inch, ultra-low mass, silk-dome, high frequency driver
- Crossover Frequency, 3.4 kHz
- 80W, Class AB amplification
- 50 Hz to 20 kHz frequency response
- 99 dB Peak SPL (@ 1 meter)
- Acoustic Tuning Controls:
- Acoustic Space (flat, -2, -4 dB)
- High Frequency (±6 dB, center 10 kHz, continuously variable)
- Mid Frequency (±6 dB, center 1 kHz, continuously variable)
- Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

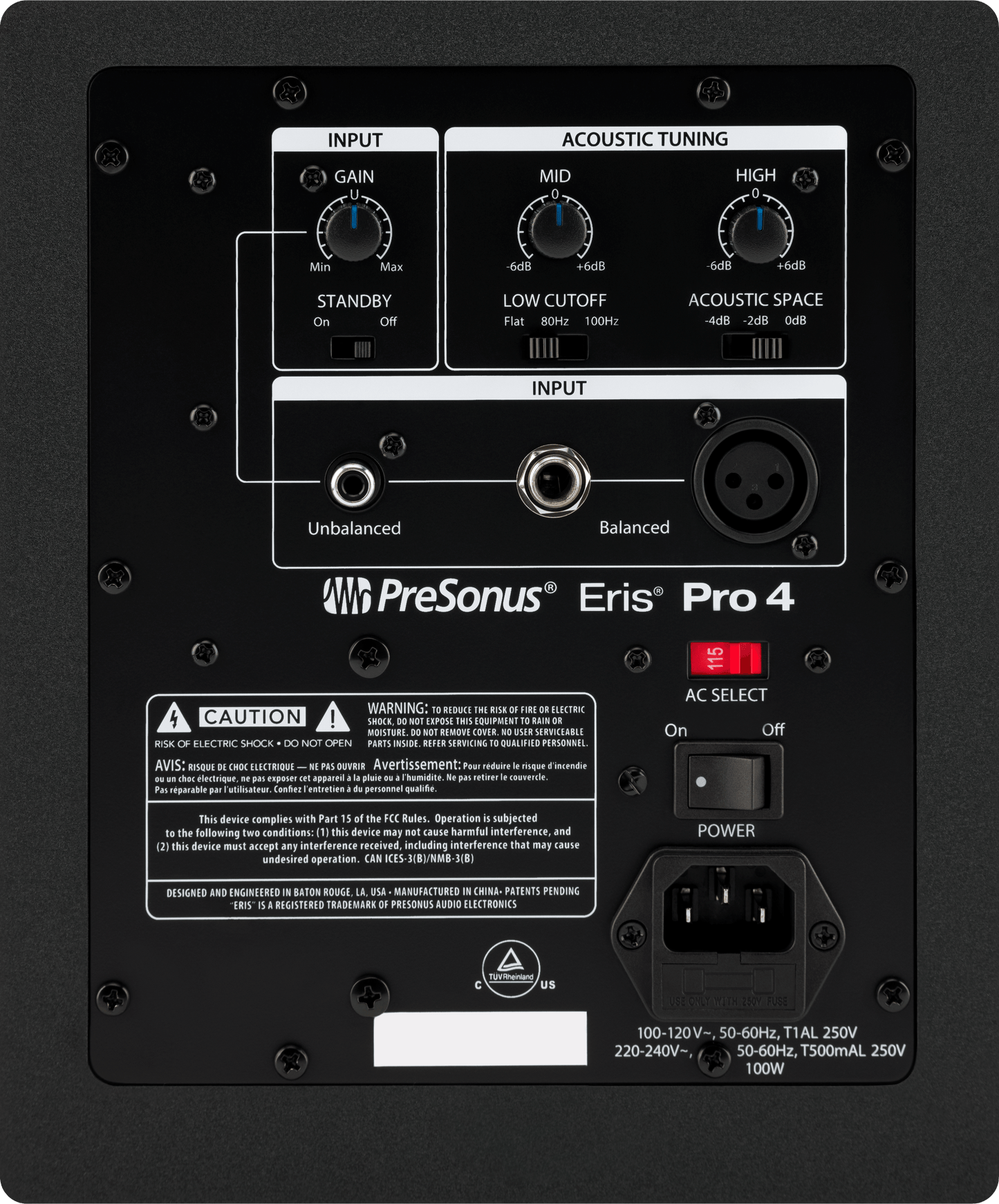

- XLR and 1/4-inch TRS balanced rear inputs
- RCA unbalanced rear-panel input
- Provisions for wall and ceiling mounting (mounts sold separately)
- Protection:
- RF interference
- Output-current limiting
- Over-temperature
- Turn-on/off transient
- Subsonic filter
- Power Saver mode (engages after 40 minutes)
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Accurate transient reproduction.
Consonant sounds in speech, percussion, and attack and decay of musical instruments are all transient signals. When reproduced accurately, the result is sonic transparency, definition, and intelligibility. With their excellent transient reproduction, Coaxial speakers minimize distortion and produce clean, clear, consistent audio at any SPL.
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
10 kΩ
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Eris® Pro 4, Black, NA
Series
Eris®
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Powere
35 Watts
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter (Coaxial)
LF Power
45 Watts
LF Transducers
4.5" Woven Glass Fiber Composite (Coaxial)
Monitor Inputs
1- Balanced XLR, 1- Balanced ¼” TRS, 1- Unbalanced RCA
Monitor Type
Horn-Loaded Coaxial 2-Way Active
Power Amplifier Type
Class AB
Measurements
Product Depth
8.6" (21.8 cm)
Product Height
9" (22.9 cm)
Product Width
7.5" (19 cm)
Miscellaneous
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Performance
Peak SPL
99 dB (@ 1 meter)
Speakers
Crossover Frequency
3.4 kHz
