Eris® E8 XT Monitor
Eris® E8 XT Monitor
Eris® E8 XT Monitor
Overview
2-Way Active Studio Monitor with EBM Waveguide
With a smooth, accurate frequency response; powerful amplification with tons of headroom; and acoustic tuning functions that ensure you get the best sound, it's no wonder that Eris®-series studio monitors have been a runaway hit since their introduction.
The Eris E8 XT delivers deep, controlled lows and a wide sweet spot in a compact form that will fit into a studio of nearly any size. The Elliptical Boundary Modeled waveguide provides a superior high-frequency response and 100° horizontal dispersion, creating a broad sweet spot - ideal for group listening and collaboration. Narrow vertical dispersion reduces reflections from your desk. A 1.25-inch silk-dome tweeter ensures snappy, accurate transient reproduction, while an 8-inch woven-composite woofer offers tight, clear bass, with plenty of punch and no flab. A ported enclosure allows the Eris E8 XT to reach down to an astonishing 35 Hz.
Acoustic tuning controls let you configure the Eris E8 XT for your room: You get Low-cut, Mid and High controls, as well as three-way Acoustic Space tuning that compensates for the effects of speaker placement against a wall or in a corner. Balanced XLR and ¼-inch TRS and unbalanced RCA line-level inputs make it easy to connect virtually any line-level source.
Suitable for both home recording studios and professional mix engineering, Eris XT studio monitors combine sterling audio quality with the flexible tuning and connectivity you've come to expect from PreSonus®.
Sold Individually.
Overview
Features
- 8-inch woven composite low-frequency transducer
- 1.25-inch (32 mm), ultra-low-mass, silk-dome, high-frequency transducer
- 100°(H)x60°(V) EBM waveguide horn and ported enclosure
- Tuning Controls for accurate mixing contour (Level, HPF, LF Trim, HF Trim, Acoustic Space)
- 140 Watt, Class AB bi-amplification drives up to 105 dB of sound
- Includes Studio Magic, a suite of over $1000 USD worth of music production software
- Balanced XLR, TRS, and unbalanced RCA inputs
- 105 dB maximum continuous SPL
- RF interference, output current limiting, over-temperature, transient, external mains fuse, and subsonic protection
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Set up your studio monitors for your room.
Eris E8 XT studio monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low-cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.
World-class recording software included.
Eris E8 XT studio monitors come with a special edition of PreSonus® Studio One™ Prime recording and production software, with the entire Studio Magic software suite enabled. Studio Magic includes over $1,000 USD worth of music software including plug-ins, loops, virtual instruments, effects and tutorials.
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
10 kΩ
Voltage
100-120V
General
Color
Black
Product Name
Eris® E8 XT Studio Monitor, Black, 100-120V
Series
Eris®
Hardware
Audio Controls
Volume Range: A-type Taper
Audio Switches
MF Control: -6, 0, +6 dB HF Control: -6, 0, +6 dB Low Cut: Flat, 80 Hz, 100 Hz Acoustic Space: Flat, -2 dB, -4 dB
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Transducers
1.25” Silk Dome Tweeter
LF Transducers
8” Reinforced Woofer

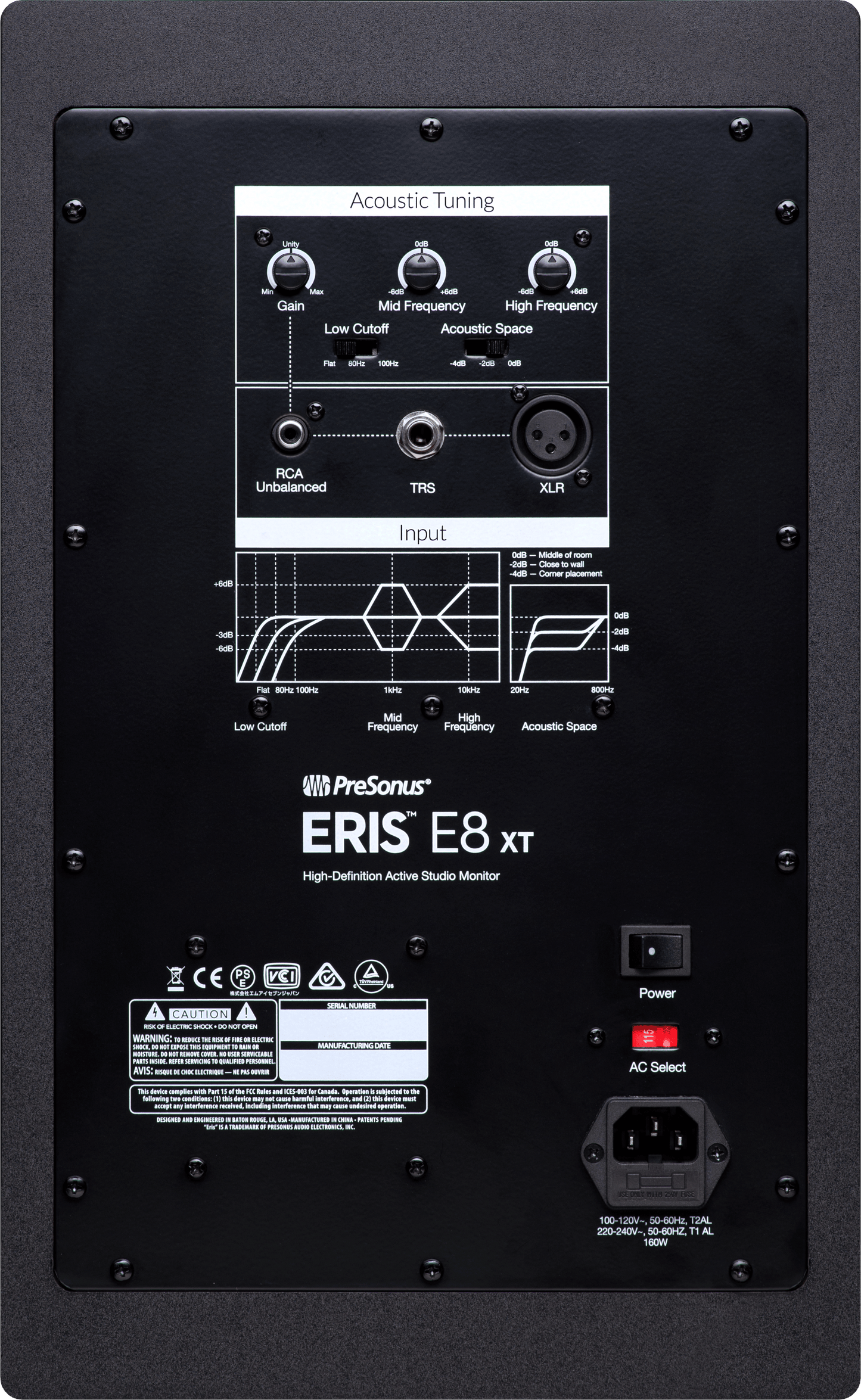

Monitor Inputs
1- Balanced XLR, 1- Balanced 1/4" TRS, 1- Unbalanced RCA
Measurements
Product Depth
11.5" (29.2 cm)
Product Height
16" (40.6 cm)
Product Width
9.75” (24.76 cm)
Miscellaneous
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
External Mains Fuse
Performance
Peak SPL
105 dB at 1 Meter
Speakers
Coverage Pattern
100 degree (H) x 60 degree (V)
Crossover Frequency
2.2 kHz
