Eris® E5 XT Studio Monitor
Eris® E5 XT Studio Monitor
Couldn't load pickup availability
Overview
Suitable for both home recording studios and professional mix engineering, Eris XT studio monitors combine sterling audio quality with the flexible tuning and connectivity you've come to expect from PreSonus. The Eris E5 XT is a substantial update to a lauded classic. Deeper lows and a wider, more controlled sweet spot, thanks to its EBM waveguide design, mean that our best-selling studio monitors just got even better.
The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wider 100-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk. Silk-dome tweeters ensure snappy, accurate transient reproduction.
The woven composite low-frequency driver offers Eris' signature tight, clear bass with plenty of punch and no flab. The ported enclosure maximizes bass response and allows the Eris E5 XT to reach down to an astonishing 48 Hz. That's 10 Hz below previous models - with no subwoofer!
Flexible input options let you connect almost any line-level source, from mixers to audio interfaces and more. Eris E5 XT monitors provide balanced XLR, balanced ¼-inch TRS, and unbalanced RCA line-level inputs. You'll have no problem hooking your Eris speakers up to virtually anything.
It's Eris remastered.
Overview
Features
- 5.25-inch woven composite low-frequency transducer and 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
- 100˚(H) x 60˚(V) EBM waveguide for wide sweet spot
- Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
- 70 watt, Class AB biamplification
- 102 dB maximum continuous SPL, with 48 Hz to 20 kHz frequency response
- Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)
- RF interference, output current limiting, over-temperature, transient, subsonic protection and amplifier "soft start" feature (eliminates popping on power-up)
- Internal power supply with IEC connector and power switch with on/off LED
- Balanced XLR and ¼-inch inputs and unbalanced RCA inputs
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Set up your studio monitors for your room.

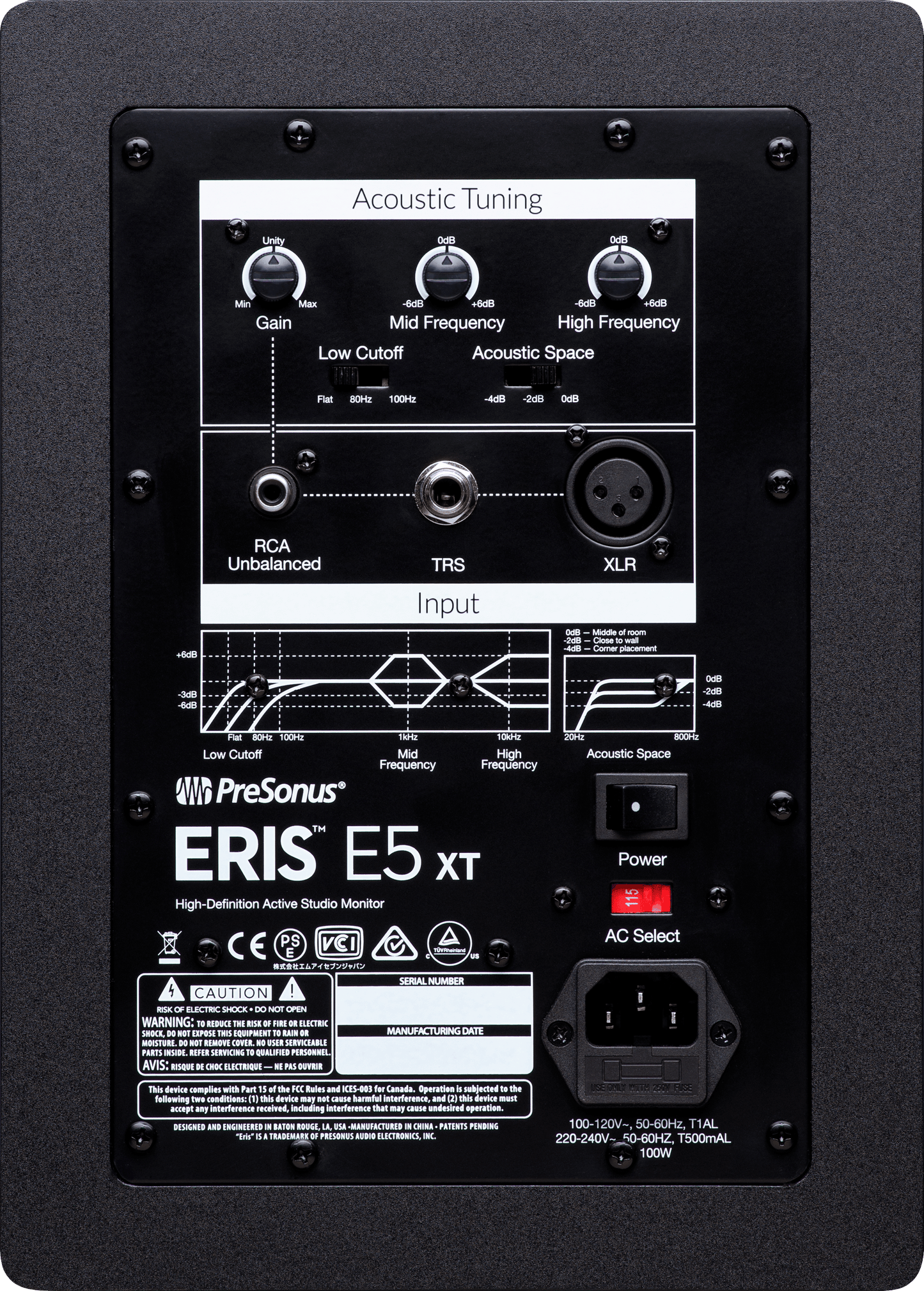

Eris E5 XT studio monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low-cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
10 kΩ
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Eris® E5 XT Studio Monitor, Black
Series
Eris®
Hardware
Audio Controls
Volume Range: A-Type Taper MF Control: -6, 0 to +6 dB HF Control: -6, 0 to +6 dB
Audio Switches
Low Cut: Flat, 80 Hz, or 100 Hz Acoustic Space: Flat, -2 dB, or -4 dB
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Transducers
1” Silk Dome Tweeter
LF Transducers
5.25”
Monitor Inputs
1- Balanced XLR, 1- Balanced ¼” TRS, 1- Unbalanced RCA
Power Amplifier Type
Bi-Amp
Measurements
Product Depth
9" (22.9 cm)
Product Height
11" (27.94 cm)
Product Width
8" (20.32 cm)
Miscellaneous
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
External Mains Fuse
Performance
Peak SPL
102 dB (@ 1 meter)
Speakers
Coverage Pattern
100 degree (H) x 60 degree (V)
Crossover Frequency
3 kHz
