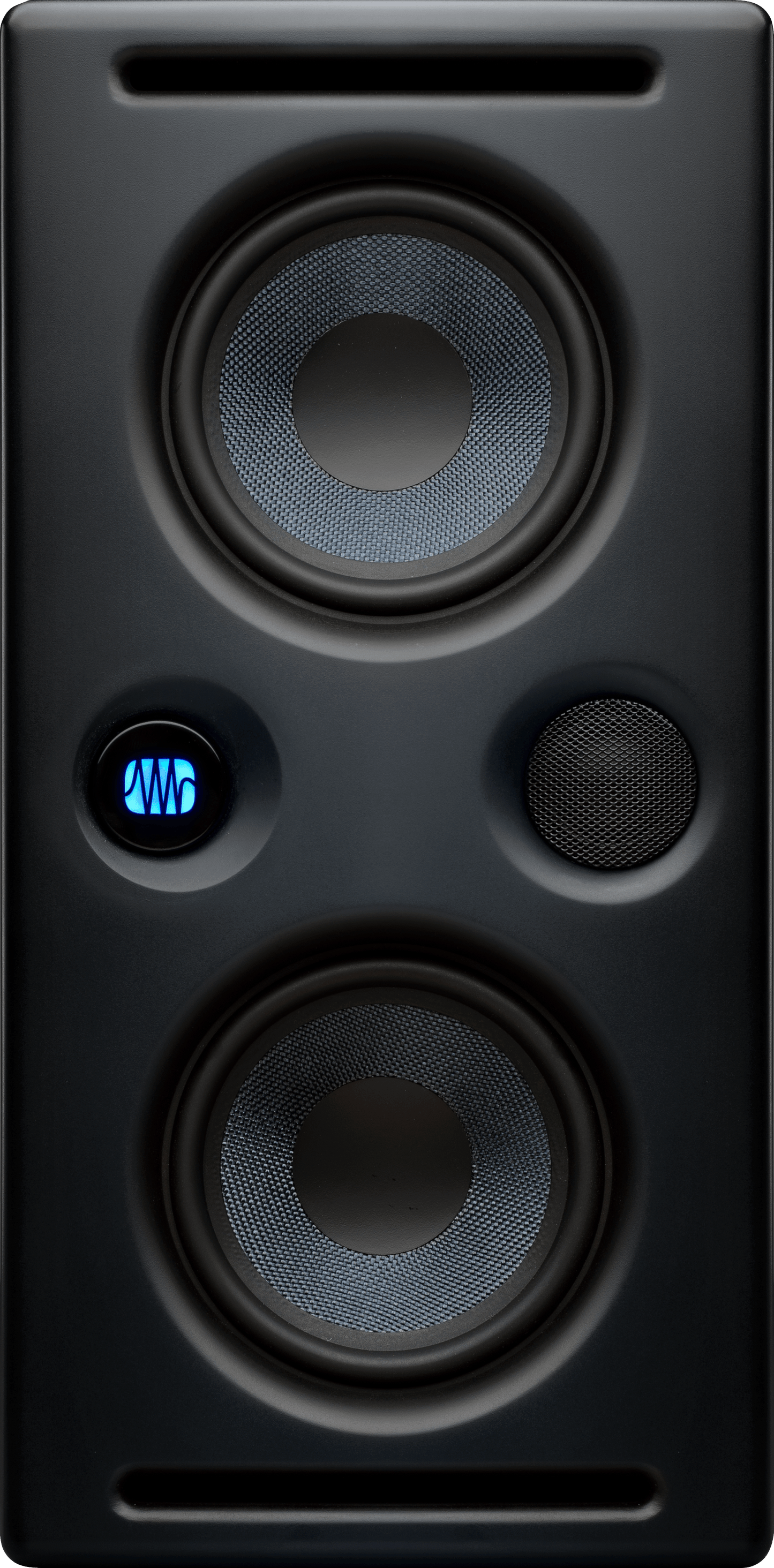

Eris® E44 Studio Monitor
Eris® E44 Studio Monitor
Couldn't load pickup availability
Overview
The Eris® E44 studio monitor delivers an expanded, highly accurate frequency response and the widest stereo field available in its class. Its nested Midwoofer-Tweeter-Midwoofer (MTM) configuration offers improved off-axis response and spatial resolution. The result is a more consistent listening experience, smoother frequency response, and an ultra-wide, detailed stereo soundstage.
Conventional two-way speaker designs can cause significant early reflections from their surrounding environment. The Eris E44 studio monitor overcomes this by positioning a 1.25-inch, silk dome, high-frequency driver between two 4.5-inch midrange drivers that cover the same frequency range.
The combined signal of the two relatively small drivers propagates forward like a single waveform, behaving like a single, larger driver. This mutual coupling provides a highly dynamic output in a compact footprint resulting in size-defying bass reproduction. At the same time, the two smaller woofers work in parallel to partially contain the dispersion of the tweeter, minimizing phase displacement. The result is incredibly detailed stereo imaging.
Like all Eris studio monitors, the E44 offers flexible connectivity and extensive acoustic tuning controls. The three-position Acoustic Space switch plus High and Mid controls help to mitigate room anomalies. A Low Cutoff filter makes it easy to integrate a Temblor® subwoofer into your monitor setup.
Overview
Features
- Nested MTM (D'Appolito) design with dual woven composite drivers provides smooth on- and off-axis response with more dynamic output than conventional two-way studio monitor configurations
- MTM (D'Appolito) design minimizes phase displacement and leads to improved spatial resolution and a much wider sweet spot
- Dual 4.5-inch, custom-woven composite LF/midrange drivers produce dynamic, size-defying bass output
- 1.25-inch, silk-dome HF driver ensures smooth high-frequency performance that is never fatiguing to the ears
- 90W Class A/B bi-amplification for an open, clear sound, and less fatiguing listening experience
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Horizontal or Vertical. It’s up to you.
Many MTM speakers must be arrayed vertically to provide a clear, interference-free midrange and treble reproduction to either side. With their nested MTM design, Eris E44 studio monitors are able to perform optimally in both orientations, letting you position your speaker the way that works best for you.
Designed to sound their best in any room.
Eris E44 studio monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low-cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
10 kΩ
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Eris® E44 Studio Monitor, Black
Series
Eris®
Hardware
Audio Controls
Volume Range: A-Type Taper MF Control: Variable (-6 to +6 dB) HF Control: Variable (-6 to +6 dB) Low Cut: Flat, 80 Hz, 100 Hz Acoustic Space: Flat, -2 dB, -4 dB
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Transducers
1.25” Silk Dome Tweeter
LF Transducers
Dual 4.5" Woven Composite
Monitor Inputs
1 x Balanced XLR, 1 x Balanced 1/4” TRS, 1 x Unbalanced RCA
Measurements
Product Depth
7" (17.8 cm)
Product Height
7" (17.8 cm)
Product Width
14.3" (36.3 cm)
Miscellaneous
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
External Mains Fuse
Performance
Peak SPL
103 dB (@ 1 meter)
Speakers
Crossover Frequency
2.9 kHz
