DigiMax 96k

DigiMax 96k

View full details

DigiMax 96k

      Overview

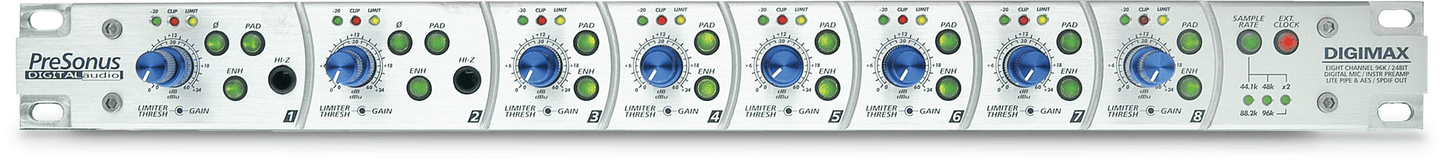

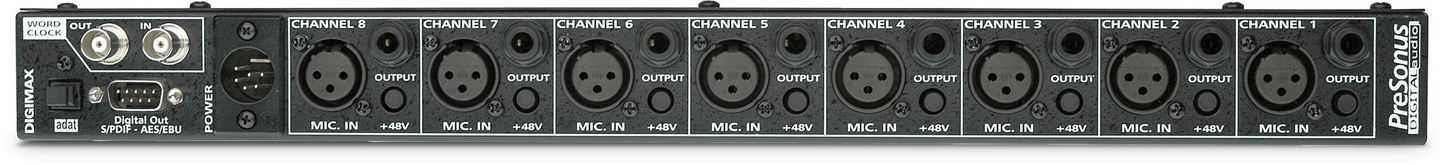

      The DigiMax 96k features more I/O options than any mic pre on the planet! 8 XLR Mic Inputs + 2 1/4" Instrument Inputs. The outputs consist of 8 balanced TRS analog outputs plus a 24 bit ADAT™ lightpipe output AND (4) stereo RCA SPDIF Digital Ouputs (Unit ships in AES/EBU mode, breakout cable not included). And here's the best part... They all work simultaneously! The Ultimate Live Recording Preamp! Use the ADAT™ Lightpipe Outputs to feed your recorders digital inputs while you send an identical signal to a FOH Console via the TRS Analog Outputs. Bye, bye latency! Use the TRS analog outputs to monitor tracks while you send the Lightpipe to your soundcard or standalone computer interfaces like MOTU 2408 and Digi001. Mixer Beefer-Upper! Add high gain/low noise quality micpre's to your digital console using either Lightpipe, AES/EBU, SPDIF, or analog TRS outputs.

      Overview

      Features

      • 44.1, 48, 88.2 and 96kHz Sample Rates
      • Ultra-Wide Dynamic Range
      • Low-Noise Operating Levels
      • Dual-Domain Limiter on Every Channel
      • EQ Enhance on Every Channel
      • -20dB Pad on Every Channel
      • 48V Phantom Power on Every Channel
      • Instrument Input on Channels One and Two
      • Phase Reverse on Channels One and Two
      • Eight 24-bit ADC Converters
      • ADAT™ Lightpipe Output
      • S/PDIF Outputs
      • AES/EBU Outputs
      • 1/4” TRS Balanced Analog Outputs
      • BNC Word Clock I/O for Sync

      Downloads

      • Owner's Manual - English
      • Techsheet - English
      • 2-Year Limited Non-Transferable Warranty (Multilingual)
