Overview
The CDL12 loudspeakers impressed ears around the world when we introduced them, thanks in no small part to their unique, patent-pending driver design that fills venues with consistent, articulate speech and music reproduction without sacrificing consistent SPL. Now that same constant-directivity performance is available in the new CDL12P, a lighter-weight design ideal for touring bands and mobile DJs who want the same scalability and sonic performance in portable design.
Like the CDL12, CDL12P is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. You get clear, articulate speech intelligibility and natural music reproduction thanks to its highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis.
The CDL12P's hybrid point-source/line-array design delivers focused sound with consistent SPL coverage both on- and off-axis, making it an excellent choice for mobile and installed applications. Rigging CDL12P enclosures is made easier thanks to integrated pin-loaded rigging hardware. A dual-angle pole mount is provided, supporting the use of one or two enclosures when pole-mounted. The CDL12P's integrated 500W x 500W Class D power amplifier features onboard DSP presets to facilitate and simplify arrayed configurations.
Overview
Features
- Continuous-directivity constant curve array with eight 2-inch cone drivers disperses sound 120° horizontally
- 15˚ vertical directivity can be extended from 30˚ up to 90˚ with additional arrayable CDL12Ps
- 12-inch, long-throw LF transducer with 2.5-inch voice coil
- Low 420 Hz crossover point minimizes comb filtering and enhances line array intelligibility
- 500 x 500 watts Class D power for high SPLs and lightning-fast transient response
- Onboard DSP: 90 High-pass filter, Array Mode (1-6 boxes), Sub Mode (Off, CDL18s, ULT18, or AIR18s)
- 35 mm pole socket with 7.5˚ downward tilt for use with up to two CDL12P on a tripod or atop PreSonus® CDL18s or ULT18 subwoofer
- Integrated flyware to create an array of up to six CDL12Ps

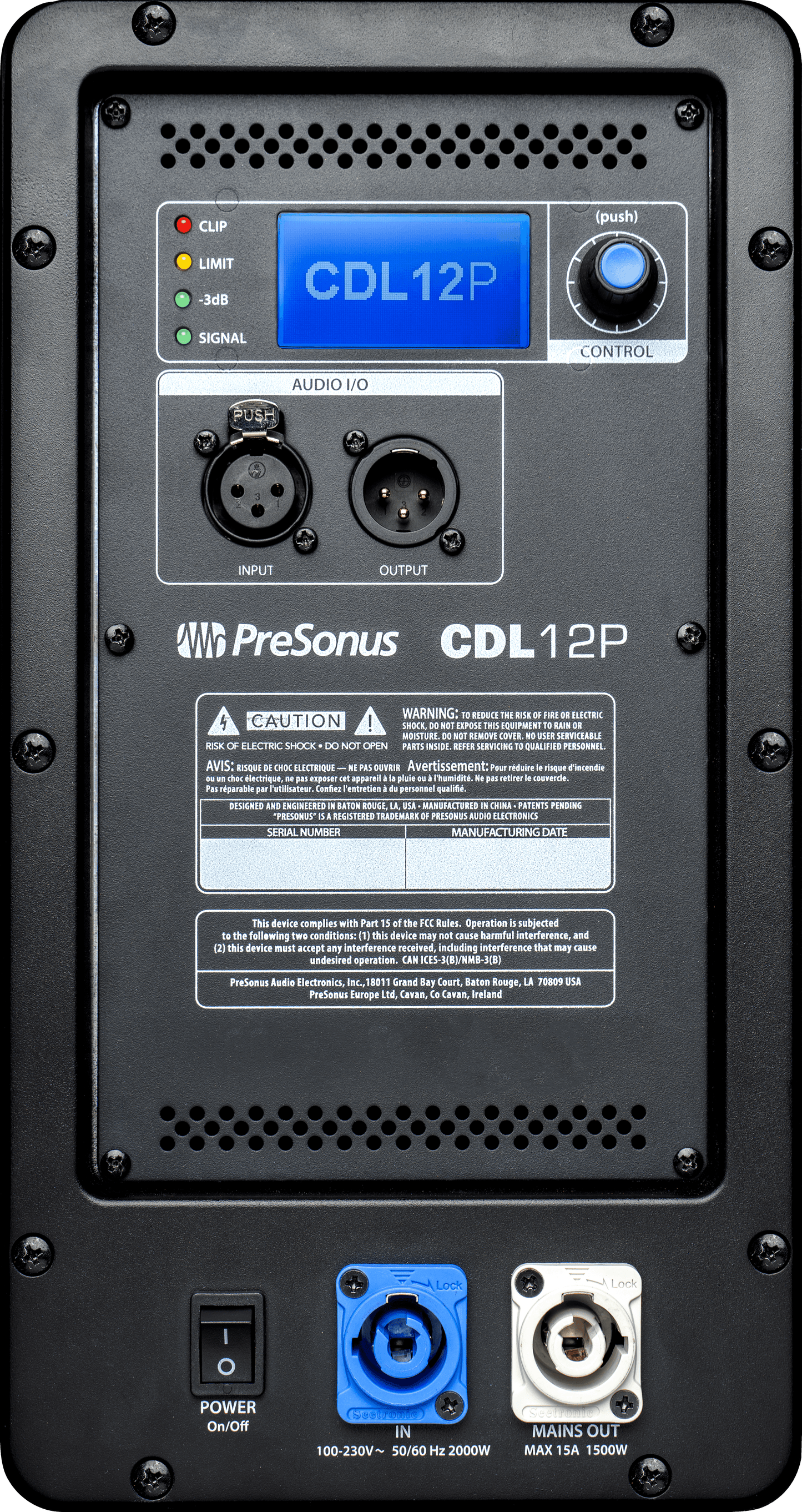

- Signal, -3 dB, Limiter Protection, and Clip Monitoring
- Rugged, lightweight plastic enclosure and tour-grade, 1.2 mm steel grille - great for touring bands and mobile DJs
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
The CDL12P’s Constant Directivity Design
Each CDL12P consists of 8 2-inch drivers aligned in a segmented, circular-arc, HF array centered in front of a 12-inch woofer. The output of the LF driver travels from the same acoustic axis as the HF array so the pattern always radiates from the center. This avoids near-field anomalies and makes the CDL12P ideal for a broad range of venue sizes.
More About the CDL12P’s HF Driver Array
The 2-inch cones’ fast transient response is matched for high- and mid-range reproduction. This is enhanced by setting the internal crossover to 420 Hz, so the CDL12P reproduces audio seamlessly, with no gaps at the heart of the musical range. This also minimizes comb filtering between 12-inch bass drivers in an array for a smooth low-mid response.
CDL12P Power Amplification
Each 2-inch speaker in the high-frequency driver array has a 1-inch voice coil, and the entire array is driven by a 500W Class D amplifier. Because the power is shared across eight voice coils, power compression is reduced, resulting in an efficient design and a flatter phase response for less fatiguing listening and a refined, balanced sound.
CDL-series Rigging Accessories
CDL loudspeakers and rigging hardware are rated for a 10:1 load. The CDL Rigging Grid is required for flown installations. The CDL Rigging Extension Bar provides tilt control. The CDL Rigging Sling is required with 4 or more CDL loudspeakers in a vertical array and when using the CDL Rigging Extension Bar with a tilt of 12˚ or greater.
PreSonus® Six-Year Warranty
When you choose CDL-series loudspeakers and subwoofers, you choose confidence. Rest assured that your PreSonus® speakers are in it for the long haul. We take our build quality seriously, and if anything goes wrong with them in your first six years of ownership (assuming you don’t abuse them), the repair or replacement is on us.
Specs
Electronics
Auxiliary Input
N/A
Channels
One
Inputs
One - 1 XLR
Line Out
One - Direct Line Out (XLR)
Power Consumption
4.2A
Voltage
100-120V
General
Amplifier Type
Class-D
Color
Black
Product Name
CDL12P Constant Directivity Sound Reinforcement Loudspeaker, Black
Series
CDL
Hardware
Audio Controls
Preset Select (Number of Arrayed Boxes) HPF On/Off PreSonus Subwoofer Configuration Preset (None, CDL18s, ULT18, AIR18s)
Cabinet Material
15mm Eucalyptus Plywood
Cooling
Free Air Convection
Grille Material
Powder-Coated Steel
HF Powere
1000W Peak, 500W Program (250W RMS)
HF Transducers
8 x 2” (1” Voice Coil)
Handle
2 Side
LF Power
1000W Peak, 500W Program (250W RMS)
LF Transducers
12” (2.5” Voice Coil)
Pole Socket
Dual-position pole mount (0˚ and 7.5˚)
Inputs
Line Inputs Impedance
40 kΩ
Measurements
Product Depth
18.25" (46.4 cm)
Product Height
18.5" (47.0 cm)
Product Width
20.5" (52.1 cm)
Miscellaneous
Power Cable
Locking AC In and Out
Protections
Amplifier: Over-Current, DC, Over/Under-Voltage, Over-Temperature, High Frequency
Transducer: Limiter
Suspension
Integrated Rigging (10:1 Load)
Performance
Amplifier Dynamic Range
119 dB (A-Weighted)
Peak SPL
130 dB
Total Harmonic Distortion
<0.05% (20 Hz - 20 kHz)
Total Power Output
2000W Peak, 1000W Program (500W RMS)
Speakers
Coverage Pattern
120 degree (H) x 15 degree (V)
Crossover Frequency
420 Hz
Speaker Type
Active 2-Way
Total Impedance
NA
