AudioBox USB® 96 Studio
AudioBox USB® 96 Studio
Couldn't load pickup availability
Overview
Complete Hardware/Software Recording Kit
AudioBox 96 Studio is a complete recording and production bundle. Get everything you need to start recording guitar (or anything else) in a single purchase!
- The AudioBox 96 USB two-channel audio interface
- M7 condenser microphone
- HD7 headphones
- Studio One Pro Perpetual License Included
The heart of the AudioBox 96 Studio is PreSonus' best-selling AudioBox USB® 96 interface, which captures your recordings in stellar studio quality. Its two front-mounted XLR / ¼" combo jacks let you connect a pair of mics for recording acoustic guitar or electric guitar cabinets. Alternatively, you can simply plug your electric guitars in directly and record direct, using Studio One's Ampire for world-class guitar amp and cab tones - and without your cranked Bassman angering your neighbors. And since there are two inputs, you and a friend can record guitar and bass or vocals and guitar simultaneously to separate tracks to mix later.
The M7 large-diaphragm condenser microphone is the perfect mic for capturing acoustic guitar or vocals. The crystal-clear HD7 headphones will help you avoid any mic feedback issues while recording with open mics, let you closely monitor your performance, as well as mix late into the night without bothering sleeping roommates or neighbors.
Finally, a perpetual license to Studio One Pro is included so your productions will be a step ahead from day one.
We even include all the cables required to hook it all up, so you'll hit the ground running right out of the box and get your creative vision out into the world. With all the hardware and software you need, the AudioBox 96 Studio makes getting started recording and mixing fast and easy.
Overview
Features

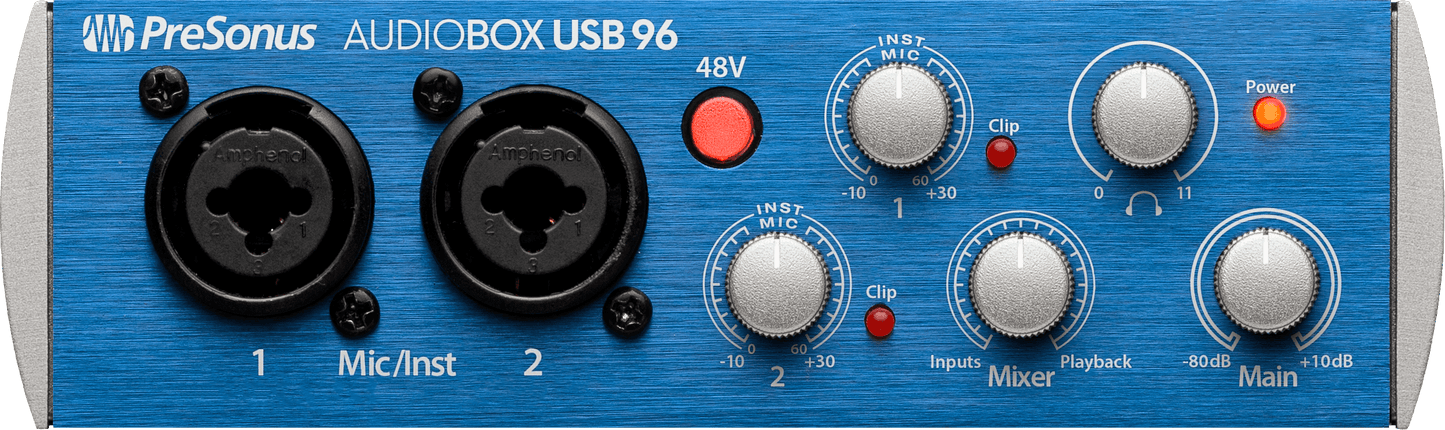

AudioBox USB 96
- PreSonus' all-time best-selling USB audio interface, now in sleek 25th-anniversary black
- Record guitar and vocals at the same time: Two crystal-clear, class-A mic preamps with +48v provide power for condenser mics
- Combo inputs let you record line-level sources like keyboards
- Zero-latency hardware monitoring lets you hear yourself in real-time via internal analog mixer
- High-volume headphone output lets you monitor your performance loudly and clearly while recording so you get a great take every time.
- MIDI In/Out lets you connect synths, drum machines, and controllers
- Balanced ¼" Main Outputs for connecting professional studio monitors
- Professional Recording Software Included – Studio One Pro License.
- USB cable included
- USB bus-powered: no wall wart required!
- 24-bit resolution; 44.1, 48, 88.1, and 96 kHz sampling rates provided for maximum audio quality
M7 Condenser Microphone
- Large-diaphragm design makes it perfect for capturing the nuance of acoustic guitar and voice
- +48v phantom-powered via AudioBox USB 96
- Mic stand adapter included
- 9' / 3 m XLR cable included
HD7 Headphones
- High resolution neodymium drivers for optimal sound quality
- Extended bass response so you'll hear the lowest lows
- Built tough to withstand abuse
- Lightweight and comfortable with long-lasting ear pads
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Software
- Universal Control v4.7.2.108537 Download (Mac)
- Universal Control v4.7.2.108537 Download (Windows)
- Universal Control v4.7.1.107907 Download (Mac)
- Universal Control v4.7.0.106978 Download (Mac)
- Universal Control v4.7.0.106978 Download (Windows)
- Universal Control v4.6.1.104762 (Mac)
- Universal Control v4.6.1.104762 (Windows)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Studio One Pro 7 DAW Software Access Included.
Your hardware registration includes a perpetual License to Studio One Pro.
Capture every nuance with the M7 condenser microphone.
Get your mic collection off to a good start with the M7 large-diaphragm condenser microphone. Condenser mics are the overwhelming choice of recording studio professionals, enabling you to capture musical details, harmonics, and subtle nuances that would get lost with dynamic mics. Large-diaphragm condenser microphones, like the M7, tend to “warm up” a sound, making them the go-to microphone for recording vocals and a wide range of instruments.
Hear every detail with HD7 professional headphones.
PreSonus’ high-definition HD7 headphones take advantage of a patented, semi-open sound chamber to deliver exceptionally deep low frequencies with a balanced and yet powerful bass punch. Accurate midrange and extended treble response let you pick out the fine details of a mix or track. The lightweight, ergonomic design adjusts to any head size, offering a comfortable listening experience during long recording sessions.
Specs
Accessories
Included Accessories
1/8" to 1/4" (3.5 to 6.3 mm), Screw-On, Gold-Plated, Stereo Mini-Plug
Electronics
Connectivity
USB 2.0
Headphone Jack
1/4" TRS Active Stereo
Inputs
Two - Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced)
Line Out
Two - 1/4" Balanced (Left and Right)
Phantom Power
+48 VDC (±2 VDC)
Phantom Power Requierments
+12 to +52 VDC, 3 mA
General
Color
Black
Product Name
AudioBox® USB® 96 Studio - 25th Anniversary Edition, Black
Series
AudioBox®
Hardware
Driver Type
50 mm, Neodymium
Microphone Element
Electret
Microphone Types
Large-Diaphragm Condenser Microphone
Inputs
Instrument Inputs Gain Range
(± 1 dB) +5 dB to 50 dB
Microphone Preamp Common Mode Rejection Ratio
(1 kHz, 55 dB Gain) > 45 dB
Microphone Preamp Frequency Response
(±3.0 dB) 20 Hz to 20 kHz
Microphone Preamp Gain Control Range
(± 1 dB) 0 dB to 35 dB
Microphone Preamp Input Impedance
(Balanced) 1200Ω
Microphone Preamp Maximum Input Level
(Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
Microphone Preamp Signal To Noise Ratio
(Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
Microphone Preamp Total Harmonic Distortion
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
Measurements
Headphone Weight Without Cable
7.8 oz (222g)
Product Depth
1.75" (44.45 mm)
Product Height
5.5" (139.7 mm)
Product Width
5.5" (139.7 mm)
Miscellaneous
Commodity Code
8517.62.0090
Power Cable
USB 2.0 Bus-Powered
Supported Sample Rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Output
Headphone Outputs Frequency Response
(±1.0 dB) 20 Hz to 30 kHz
Headphone Outputs Maximum Output
60 mW/Ch @ 60Ω Load
Main And Line Outputs Output Impedance
51Ω
Performance
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
Dynamic Range
11 dB
Headphone Frequency Response
10 Hz to 30 kHz
Headphone Maximum Power
300 mW
Headphone Rated Impedance
32Ω
Headphone Sensitivity
98 dB SPL (1 mW)
Maximum SPL
136 dB SPL
Microphone Frequency Response
40 Hz - 18 kHz
Microphone Sensitivity
-39 dBV/pa (12.2 mV/pa)
Polar Patern
Cardioid
Specs
Accessories
Included Accessories
1/8" to 1/4" (3.5 to 6.3 mm), Screw-On, Gold-Plated, Stereo Mini-Plug
Electronics
Connectivity
USB 2.0
Headphone Jack
1/4" TRS Active Stereo
Inputs
Two - Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced)
Line Out
Two - 1/4" Balanced (Left and Right)
Phantom Power
+48 VDC (±2 VDC)
Phantom Power Requierments
+12 to +52 VDC, 3 mA
General
Color
Blue
Product Name
AudioBox® USB® 96 Studio, Blue
Series
AudioBox®
Hardware
Driver Type
50 mm, Neodymium
Microphone Element
Electret
Microphone Types
Large-Diaphragm Condenser Microphone
Inputs
Instrument Inputs Gain Range
(± 1 dB) +5 dB to 50 dB
Microphone Preamp Common Mode Rejection Ratio
(1 kHz, 55 dB Gain) > 45 dB
Microphone Preamp Frequency Response
(±3.0 dB) 20 Hz to 20 kHz
Microphone Preamp Gain Control Range
(± 1 dB) 0 dB to 35 dB
Microphone Preamp Input Impedance
(Balanced) 1200Ω
Microphone Preamp Maximum Input Level
(Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
Microphone Preamp Signal To Noise Ratio
(Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
Microphone Preamp Total Harmonic Distortion
THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
Measurements
Headphone Weight Without Cable
7.8 oz (222g)
Product Depth
1.75" (44.45 mm)
Product Height
5.5" (139.7 mm)
Product Width
5.5" (139.7 mm)
Miscellaneous
Commodity Code
8517620000
Power Cable
USB 2.0 Bus-Powered
Supported Sample Rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Output
Headphone Outputs Frequency Response
(±1.0 dB) 20 Hz to 30 kHz
Headphone Outputs Maximum Output
60 mW/Ch @ 60Ω Load
Main And Line Outputs Output Impedance
51Ω
Performance
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB
Dynamic Range
11 dB
Headphone Frequency Response
10 Hz to 30 kHz
Headphone Maximum Power
300 mW
Headphone Rated Impedance
32Ω
Headphone Sensitivity
98 dB SPL (1 mW)
Maximum SPL
136 dB SPL
Microphone Frequency Response
40 Hz - 18 kHz
Microphone Sensitivity
-39 dBV/pa (12.2 mV/pa)
Polar Patern
Cardioid
