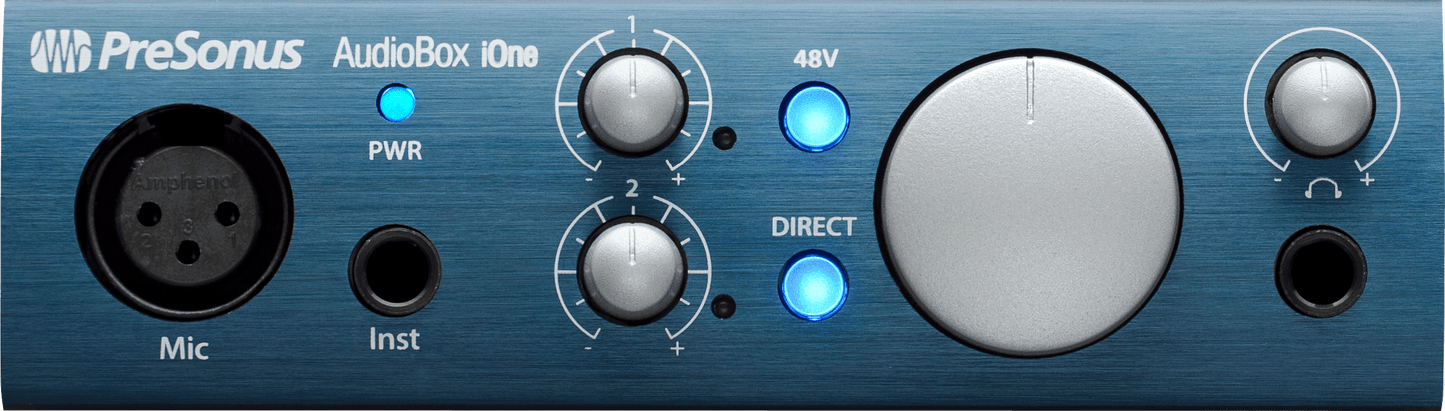

AudioBox iOne
AudioBox iOne
SKU: 2777700107
Couldn't load pickup availability
AudioBox iOne
Overview
Bring your studio with you and record wherever you go! The two-input PreSonus® AudioBox® iOne lets you capture voice and instrument on macOS, Windows and iPadOS devices. Simply plug in your guitar and microphone, and you're ready to create! USB bus-powered and bundled with powerful, easy-to-use recording software, the AudioBox iOne makes it easy to capture ideas and create professional-quality recordings.
The AudioBox iOne offers one instrument input for your guitar or bass and one mic input with a sweet-sounding Class A mic preamp that will capture your voice in all its glory, plus phantom power for condenser microphones. High-quality 24-bit, 96 kHz digital converters; balanced ¼-inch outputs; and a loud, clear headphone output with independent level control ensure you hear every detail. An internal analog mixer enables you to monitor recorded tracks and overdubs with zero latency.
Record in stereo on iPad with free PreSonus Capture® Duo or record up to 32 tracks with affordable Capture for iPad. Then wirelessly beam your iPad tracks to included Studio One™ recording and production software for macOS and Windows for editing and mixing - or do the whole project with Studio One.
The AudioBox iOne can sit on a tabletop or fit in the pocket of a backpack and works with standard iOS power accessories. Its metal chassis is built to travel, yet it weighs just 1.35 pounds (0.62 kg). Your AudioBox iOne is ready to go wherever sound takes you.
Overview
Features
- Bus-powered USB 2.0/iPad audio interface
- 24-bit resolution; 44.1, 48, 88.2, and 96 kHz sampling rate
- 1 instrument input and 1 microphone input with low-noise, high-headroom, Class A mic preamplifier and +48V phantom power
- 2 balanced ¼-inch TRS main line-level outputs
- Stereo headphone output with independent level control
- Zero-latency monitoring via internal analog mixer (fixed 50/50 mix via Direct button)
- Large main volume knob
- Signal present and clipping LEDs
- Includes Studio One™ Artist DAW software (macOS/Windows) and Studio Magic Software Suite (more than $1,000 value!); compatible with recording software for macOS, Windows, iOS and iPadOS
- Metal chassis with Kensington lock hole
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Resources
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
World-class recording software included.
The AudioBox® iOne works with virtually all macOS, Windows, iOS and iPadOS audio-recording software and comes with a license for PreSonus® Studio One™ Artist for a complete recording solution. Studio One is easy to learn and enables you to compose, record and produce without getting distracted by the tools.
Make your own magic.
Expand your Studio One™ experience with the Studio Magic Suite of software. Studio Magic iincludes over $1,000 USD worth of music software including plug-ins, loops, virtual instruments, effects and tutorials.
Specs
Electronics
Connectivity
USB 2.0
Headphone Jack
1/4" TRS Active Stereo
Inputs
Two - 1 Mic/Line, 1 Line
Phantom Power
+48 VDC (±2 VDC)
Voltage
USB Bus Powered
General
Color
Blue
Product Name
AudioBox® iOne, Blue
Series
AudioBox®
Inputs
Microphone Input Connection Type
XLR Female, Balanced
Microphone Preamp Common Mode Rejection Ratio
>65 dB (1 kHz, 52 dB Gain)
Microphone Preamp Frequency Response
10 Hz to 40 kHz (±3.0 dB)
Microphone Preamp Gain Control Range
0 dB to 52 dB (±1 dB)
Microphone Preamp Input Impedance
1200Ω
Microphone Preamp Maximum Input Level
+10 dBu (Unity Gain, 1 kHz at 0.5% THD+N)
Microphone Preamp Signal To Noise Ratio
>95 dB (Unity Gain, Reference = +4 dBu, 20 Hz to 22 kHz)
Microphone Preamp Total Harmonic Distortion
<0.008% (Unweighted, 1 kHz at +4 dBu Output, Unity Gain)
Measurements
Product Depth
5.31" (13.49 cm)
Product Height
1.71” (4.35 cm)
Product Width
5.9" (15 cm)
Miscellaneous
Commodity Code
8517620000
Power Cable
USB 2.0 Bus-Powered
Supported Sample Rates
44.1, 48, 88.2, 96 (kHz)
Output
Headphone Outputs Frequency Response
20 Hz - 30 kHz (±1.0 dB)
Headphone Outputs Impedance Working Range
10Ω
Headphone Outputs Maximum Output
60 mW/Channel at 60Ω Load
Line Outputs Connection Type
1/4" TRS Female
Main And Line Outputs Output Impedance
51Ω
Performance
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
105 dB (A-Weighted, 48 kHz Sample Rate)
