AIR15s Active Sound-Reinforcement Subwoofer
AIR15s Active Sound-Reinforcement Subwoofer
Couldn't load pickup availability
Overview
Designed to complement any full-range PA loudspeaker, and a perfect companion for the PreSonus® AIR series, the AIR15s active subwoofer delivers a powerful, clear and accurate low-end punch. With its 15-inch low-frequency transducer, driven by 1,200 watts (peak) of Class D power, it provides plenty of detailed bottom end, all the way down to 35 Hz.
Despite its power, the AIR15s is portable, compact and lightweight, with a rugged, tour-grade birch enclosure. It's easy to transport and suitable for mobile applications, as well as installs, with integrated provisions for the included caster kit, ground-stacking provisions and ergonomic handles on both sides.
AIR-series subwoofers feature easy-to-use controls and signal-processing presets. Set them for normal front-of-house use or boost the low-end with the Mo' Bass preset. Reverse polarity, use the lowpass filter to set a crossover frequency, adjust the power amp's master output level, even turn the grille LED off for installs - all at the touch of a button. A variable alignment delay properly aligns your three-way system.
Most subwoofers are essentially omnidirectional, which can cause feedback onstage and make monitoring difficult. Creating a subwoofer array helps keep excess energy off of the stage and in the audience. AIR-series subwoofers provide the tools you need to create these arrays with ease.
Most important, the AIR15s sounds great, delivering outstanding low-end clarity and natural music reproduction.
Overview
Features
- 15-inch low-frequency driver with a 3-inch voice coil
- 1,200W (peak) Class D power amp
- Maximum SPL 126 dB peak with 35 Hz to 160 Hz frequency response
- 2 combo XLR and ¼-inch line inputs and two XLR direct outputs
- Easy-to-use DSP performance presets: Normal (typical FOH use) and Mo' Bass (extended low-end performance)
- Locate adjustment presets: Normal (non-arrayed), Cardioid (ground-stacked cardioid array) and Endfire (endfire cardioid array)
- Fully variable lowpass filter (sets the crossover point) with presets for AIR15, AIR12 and AIR10
- Alignment delay (adds delay time relative to full-range speaker) and Polarity switch (inverts the summed input signal)
- 2 comfortable ergonomic side handles, ground-stack provisions, caster provisions (caster kit included) and defeatable front-panel LED
- Rugged, texture-painted, birch enclosure with tour-grade, 17 gauge steel grille
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Creating Subwoofer Arrays
Two subwoofers in a traditional stereo configuration can cause a buildup of excess energy onstage. AIR subwoofers’ Cardioid DSP preset makes it easy to create a cardioid array with a more direct radiation pattern, keeping energy offstage and in the audience. Or create an end-fire array for even more off-axis rejection, using the Endfire preset.

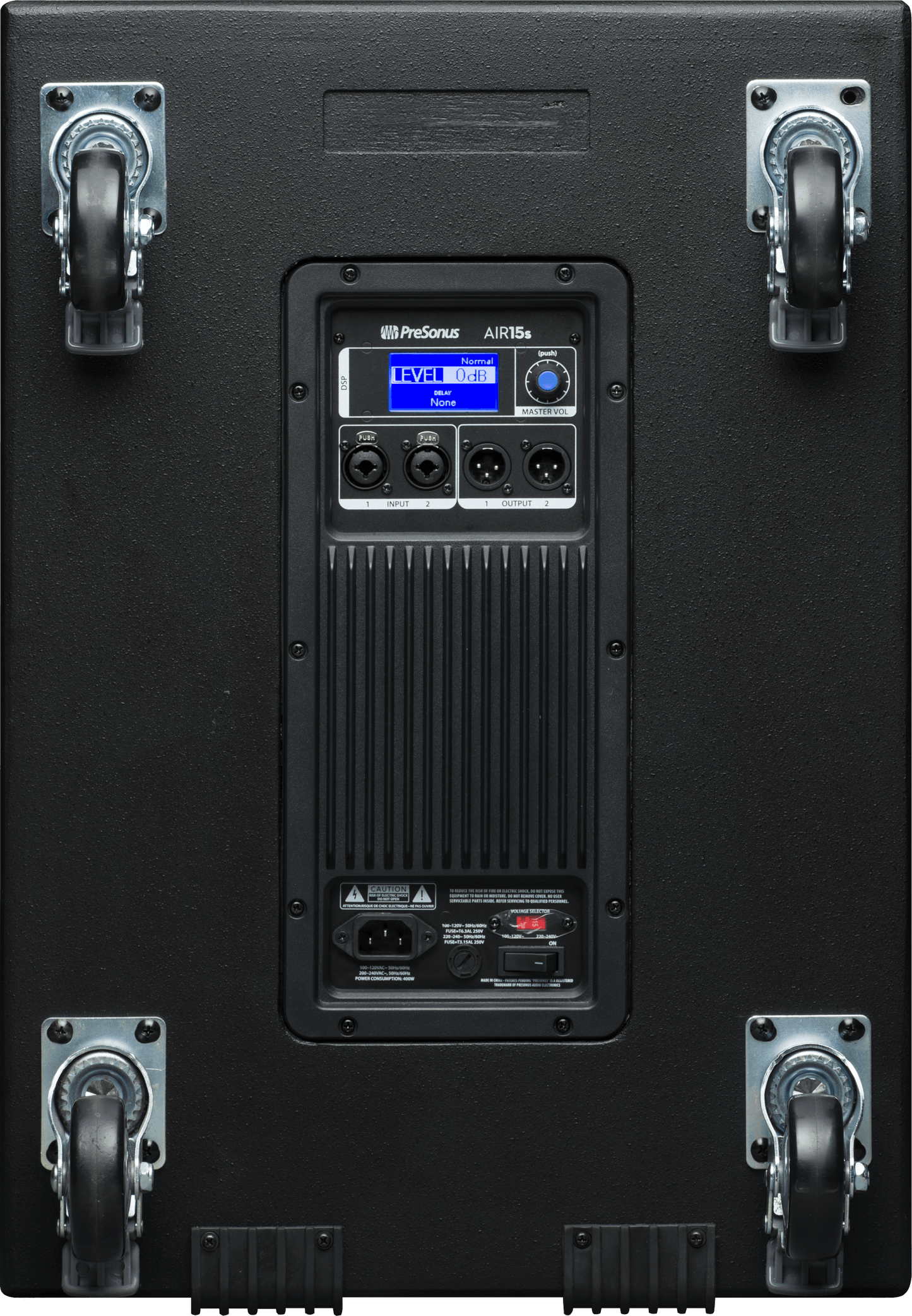

AIR15s Inputs, Outputs and More
The AIR15s sports two combo XLR and ¼-inch TRS line-level inputs with level control, and throughputs are provided to connect full-range systems or multiple subwoofers in larger systems. You can even defeat the front power-indicator LED for low-visibility installs or set it to illuminate only when the protection limiter is engaged.
System Alignment and Crossover Settings
The AIR15s’ variable alignment delay properly aligns your three-way system, whether the full-range loudspeaker is placed atop the subwoofer, using the sub pole, or is placed a few feet away. A variable lowpass filter enables you to dial in the best crossover point. Optimized settings are provided for AIR-series full-range loudspeakers.
PreSonus® AIR Series Six-Year Warranty
When you choose AIR-series loudspeakers, you choose confidence. Rest assured that your PreSonus® speakers are in it for the long haul. We take our build quality seriously, and if anything goes wrong with them in your first six years of ownership (assuming you don’t abuse them), the repair or replacement is on us.
Specs
Auxiliary Input
N/A
Channels
Two
Inputs
Two - 2 x XLR/TRS Line Combo
Line Out
Two - 2 x XLR Link Out
Power Consumption
3.5A (230V-50 Hz), 7A (120V)
VoltageRequirements
100-240 VAC, 50-60 Hz
Amplifier Type
Class-D
Color
Black
Product Name
AIR15S Active Sound-Reinforcement Subwoofer, Black
Series
AIR
Cabinet Material
15mm Plywood
Grille Material
1.5 mm Steel
Handle
2 Side
LF Transducers
15” (3” Voice Coil)
Pole Socket
Ground-Stack Provisions
Product Depth
23.9" (606 mm)
Product Height
24" (60.96 cm)
Product Width
16.7” (42.4 cm)
DSP Features
LCD Screen With EQ and Multiple Presets
Power Cable
IEC
Peak SPL
126 dB
Total Power Output
1200W Dynamic (600W Continuous)
Speaker Type
Active Vented Design
Total Impedance
NA
